Mercedes A6337550188 - BETAETIGUNGSSTANGE R

INTOURO ME 633.252

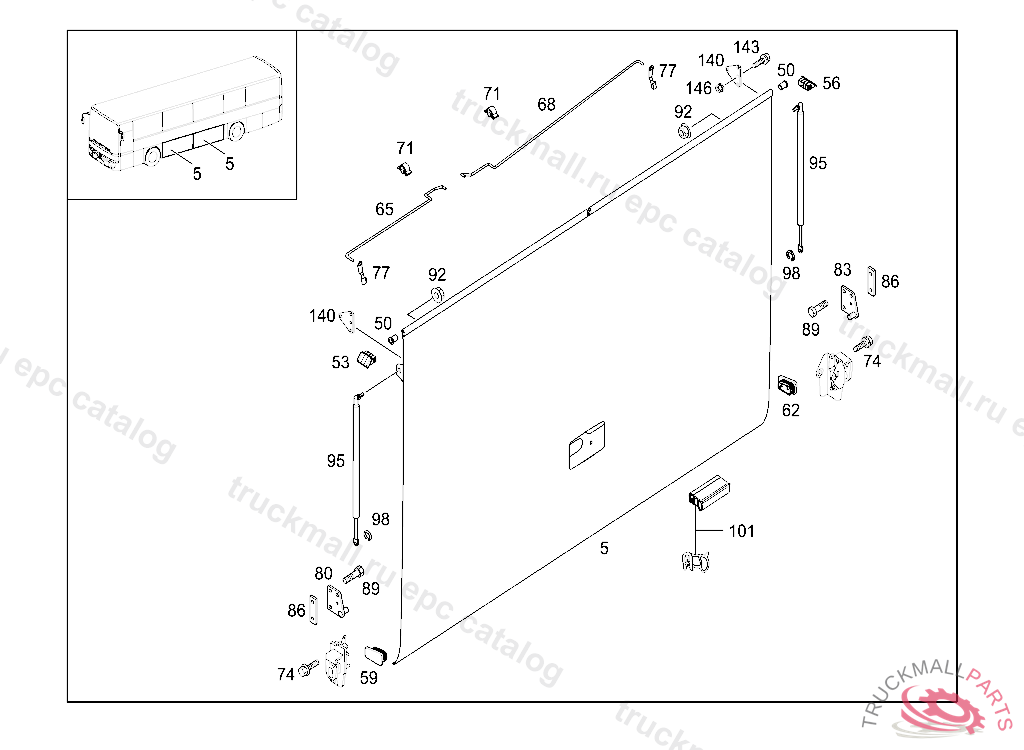

75 OUTSIDE FLAPS - 420 LUGGAGE COMPARTMENT FLAP IL. 5

Поз.
Артикул
Описание
50
A0009926205
BUSHING
53
A0009878945
LOCKING CAP
56
A0009879045
LOCKING CAP
59
A0009877645
LOCKING CAP
62
A0009877745
LOCKING CAP
65
A6297540219
ROD. STRUTL437 MM
65
A6337551288
65
A6337550488
ROD LEFT L747MM
65
A6337550088
ROD LEFT L655MM
65
A6327550488
RODL822 MM
65
A6337540819
68
A6337550188
ROD RIGHT L707,5MM
68
A6327550588
RODL883 MM
68
A6337540919
68
A6337551488
RODL561MM
68
A6337550588
ROD RIGHT L496MM
68
A6297540319
ROD. STRUTL498 MM
74
N910105006002
HEXAGON HEAD BOLT
77
A0007580042
LOCK
80
A0007580003
STRIKER
83
A0007580103
STRIKER
86
A6297550111
PLATE
89
N910105008041
SCREW , Replaced By: N910143008000
92
N913012008001
NUT HINGE LEVER TO MOUNTING
92
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
95
A6297500036
SPRING PNEUMATIC SPRING 330N
95
A6297500936
SPRING PNEUMATIC SPRING 520 N
95
A6339800664
GAS SPRING630N
98
N000471008000
LOCK RING
101
A0007570474
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
A0007570274
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
140
A6337541914
BRACKET
143
N910105006004
SCREW , Replaced By: N914146006102
146
N910112006001
NUT , Replaced By: N913023006001
