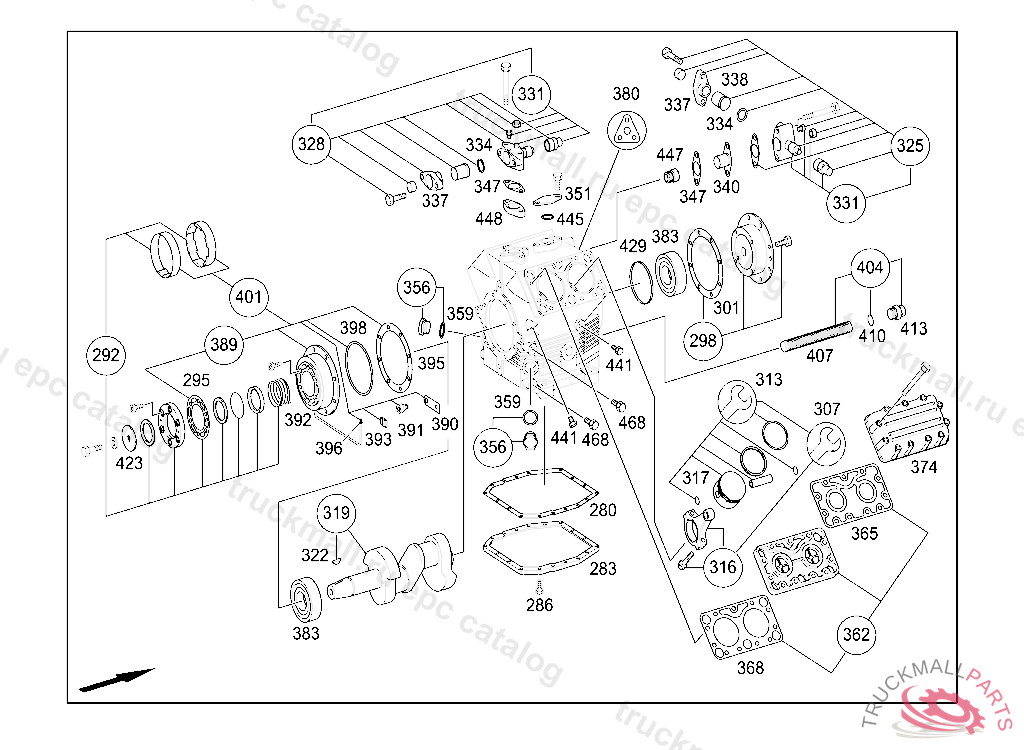

Поз.
Артикул
Описание
280
WEATHERSTRIP
283
PLATE
286
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
292
BEARING CAP REPAIR KIT
295
GASKET
298
OIL PUMP (PARTS KIT),OIL PUMP
301
GASKET
301
307
313
316
CONNECTING ROD
317
LOCKFKX 40/655K
319
CRANKSHAFT
322
SPRING
325
328
VALVE PARTS KIT
331
VALVE
334
GASKET34X42 MM
337
FLANGE16MM
338
PIPE SOCKET
340
STRAINER ON SUCTION SIDE
347
GASKET"KONVEKTA", UP TO IDENT NO. IN CASE OF KONVEKTA 096427, IN CASE OF WEBASTO 096251 EXCEPT FOR 096457,096458
347
GASKET"KONVEKTA", Replaced By: A0008312998
351
FLANGE9MM, TO A 629 830 94 60
356
SIGHT GLASS22MM, TO A 629 830 94 60
359
SEAL28.3X1.8MM
362
VALVE
365
GASKET
368
SEAL
374
COVER
380
GASKET KIT
383
CYLINDR. ROLLER BEARING
383
CYLINDR. ROLLER BEARING OIL PUMP, Replaced By: A0109814301
389
MOUNTING
390
HOSE BRACKET
391
SCREW
392
PLATE
393
CLAMP
395
GASKET FRONT
396
398
SEAL RING101.19X3.53MM
401
SEAL RING
404
STRAINER
407
STRAINER
410
SEAL27X22X2MM
413
SCREW SRREW PLUG M22X1,5
423
WASHER CRANKSHAFT 50X12,5X8MM
429
TOLERANCE RING
441
SCREW SRREW PLUG 1/8"
445
SEAL RING
447
VALVE
448
INTERMEDIATE PIECE15MM
448
INTERMEDIATE PIECE46MM
448
INTERMEDIATE PIECE
448
INTERMEDIATE PIECE25MM
448
INTERMEDIATE PIECE WITH SCREW FITTING 34MM
468
FASTENER SRREW PLUG 1/4"
999
BEARING DIA., 31X33,8MM
999
INTERMEDIATE PIECE PARTS KIT, TO BE ADAPTED DURING ASSEMBLY
999
SIGHT GLASS ELEMENT 22MM
999
999
999
999
SEAL42X36X1,5MM
