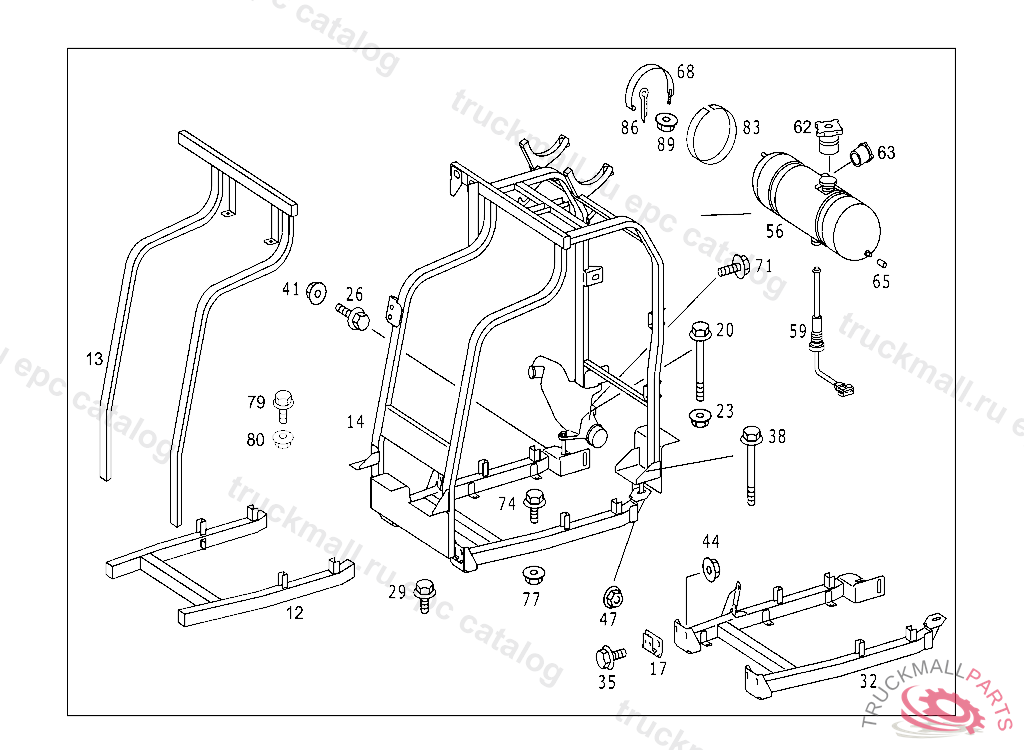

Поз.
Артикул
Описание
14
17
20
SCREW SHIM TO BRACKET
23
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
26
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
29
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
32
35
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
38
SCREW SHIM TO BRACKET
41
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
44
NUT , Replaced By: N913023010002
47
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
56
59
SENDER UNIT , Replaced By: A0025404417
59
SENDER UNIT COOLING WATER LEVEL CONTROL
62
RADIATOR CAP
63
RADIATOR CAP ,D 247423
65
BOTTOM EXPANSION TANK
65
BOTTOM EXPANSION TANK
68
STRAP EXPANSION TANK,C 087591
71
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
74
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
77
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
77
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
83
SHIM EXPANSION TANK TO BRACKET
86
COTTER PIN LEVER TO TORSION BAR
89
HEXAGON NUT. NUT LINE TO SIDE MEMBER
