Mercedes A6343280341 -

O 500 R / 1632/30 634.001

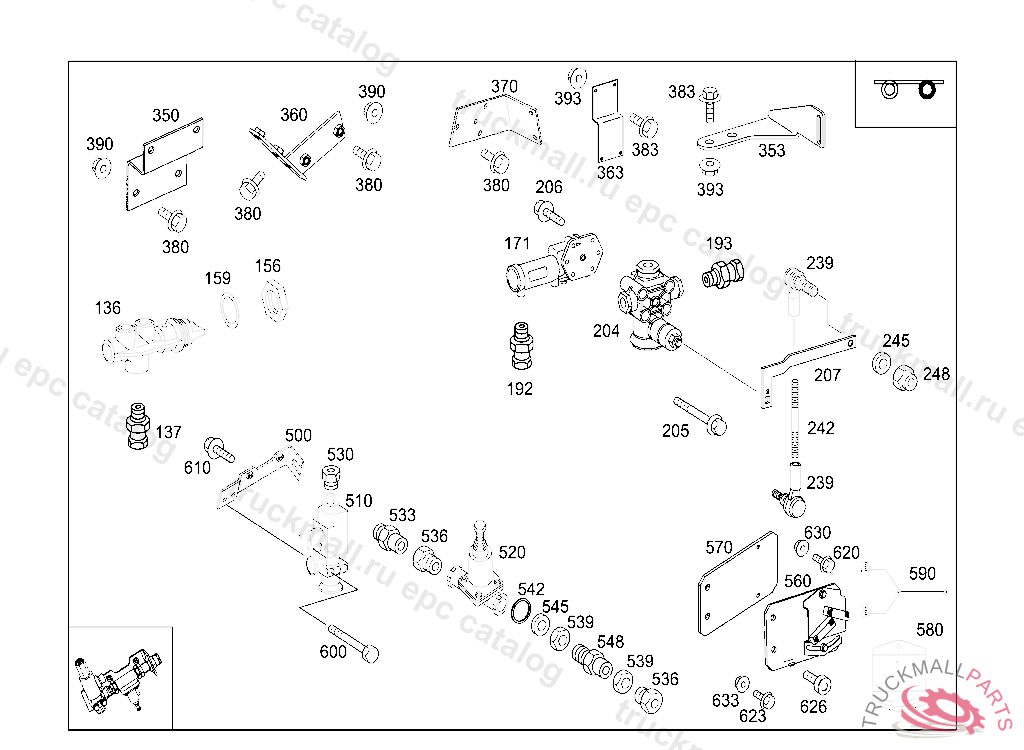

32 SPRINGS AND SUSPENSION - 715 SELF-LEVELLING DEVICE IL. 4

Поз.
Артикул
Описание
136
A0003277725
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
137
A0009974934
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
137
A0089971272
FITTING , Replaced By: A0089972572
137
A3829907078
CONNECTOR M10X1 (VOSS 230)
156
A0049906351
NUT VALVE TO BRACKET
156
A3839900051
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
159
A0059903940
WASHER
350
A6343280341
360
A6343201443
360
A6343201343
380
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
380
N910105008076
HEXAGON HEAD BOLT. SCREW SUSPENSION EYE AND BRACKET TO CYLINDER HEAD M 8X70,TO 366 223 06 41
380
N910105008039
SCREW , Replaced By: N910143008002
390
N913023008003
NUT HORN TO BRACKET M8
999
A3965840026
GUIDE SIGN VALVE TO CAB
