Mercedes
›
BUS
›
O 500 R / 1632/30
›
634.001
›

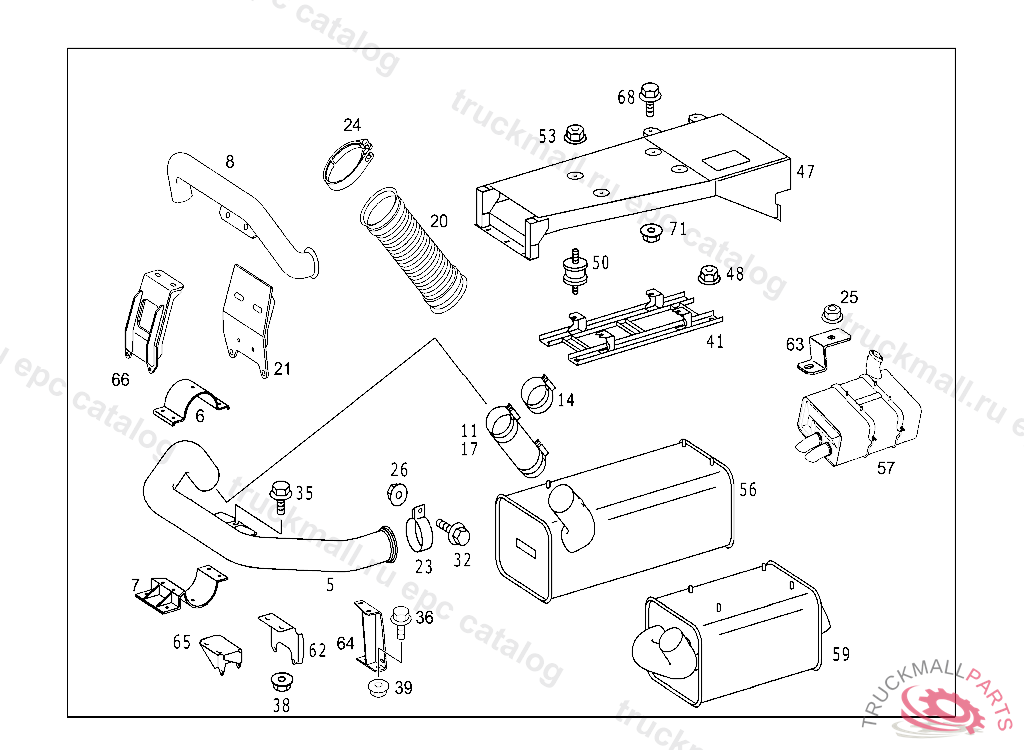

49 EXHAUST SYSTEM
›
030 EXHAUST PIPE TO SUBSTRUCTURE IL. 1
Mercedes A6344920741 -
O 500 R / 1632/30 634.001
49 EXHAUST SYSTEM - 030 EXHAUST PIPE TO SUBSTRUCTURE IL. 1
Поз.
Артикул
Описание
5
A6344900319
5
A6344900419
8
A6344900519
11
A3824907065
FLEXIBLE METAL TUBE , Replaced By: A3824900165
11
A3824900165
FLEXIBLE METAL TUBE EXHAUST PIPE TO FRONT EXHAUST MUFFLER
14
A3824920140
CLAMP
14
A3844927340
CLAMP , Replaced By: A3824920140
21
A6344900240
23
A6209970590
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
25
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
26
N913023008003
NUT HORN TO BRACKET M8
32
N910105008020
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
35
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
38
N910112010001
NUT , Replaced By: N913023010002
41
A6344900334
41
A6344900034
47
A6344900234
47
A6344900434
48
N910112012001
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
50
A6349980041
BUFFER
50
A3475040012
RUBBER MOUNTING
53
N910112010001
NUT , Replaced By: N913023010002
56
A6344900501
56
A6344900901
56
A6344900001
59
A6344900401
59
A6344900201
62
A6344920041
63
A6344921441
64
A6344920741
65
A6344920341
66
A6344900137
68
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
71
N910112010001
NUT , Replaced By: N913023010002
