Главная
›
Mercedes
›
BUS
›
O 500 R / 1632/30
›
634.001
›
47 FUEL SYSTEM
›

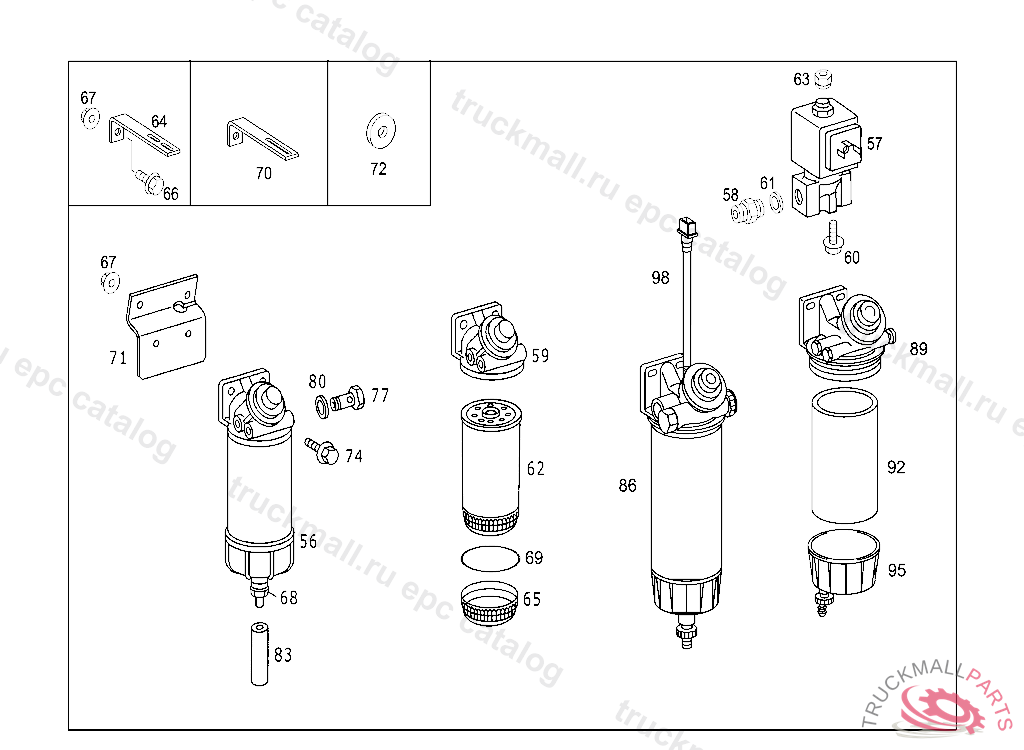

090 FUEL LINES,FUEL FILTER,AND BRACKET IL. 2
Mercedes N007603016102 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
O 500 R / 1632/30 634.001
47 FUEL SYSTEM - 090 FUEL LINES,FUEL FILTER,AND BRACKET IL. 2
Поз.
Артикул
Описание
56
A9584700390
FUEL FILTERMANN
56
A6884707090
FUEL FILTER , Replaced By: A6954700090
56
A6954700090
FUEL FILTER
59
A3760927208
FILTER HEAD
62
A3844777015
FILTER ELEMENT
62
A9584770115
FILTER ELEMENTTOMANN
62
A9794770015
FILTER ELEMENTTORACOR
64
A3822788040
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
65
A9584770116
PART NAME MISSINGTOA 958 470 04 90 (MANN)
65
A3760927104
FILTER BOWL. TRAY
67
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
68
A3760927201
FITTING. FILTER
69
A0229974545
SEALING RINGTO A 958 477 01 16
71
A6344700081
72
A3609901840
WASHER CROSS MEMBER TO SUPPORT
74
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
74
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
77
N915036012200
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
77
N915036012101
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
80
N007603016102
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
83
A3509978482
HOSE PARKING BRAKE VALVE,CONNECTION: "3"
