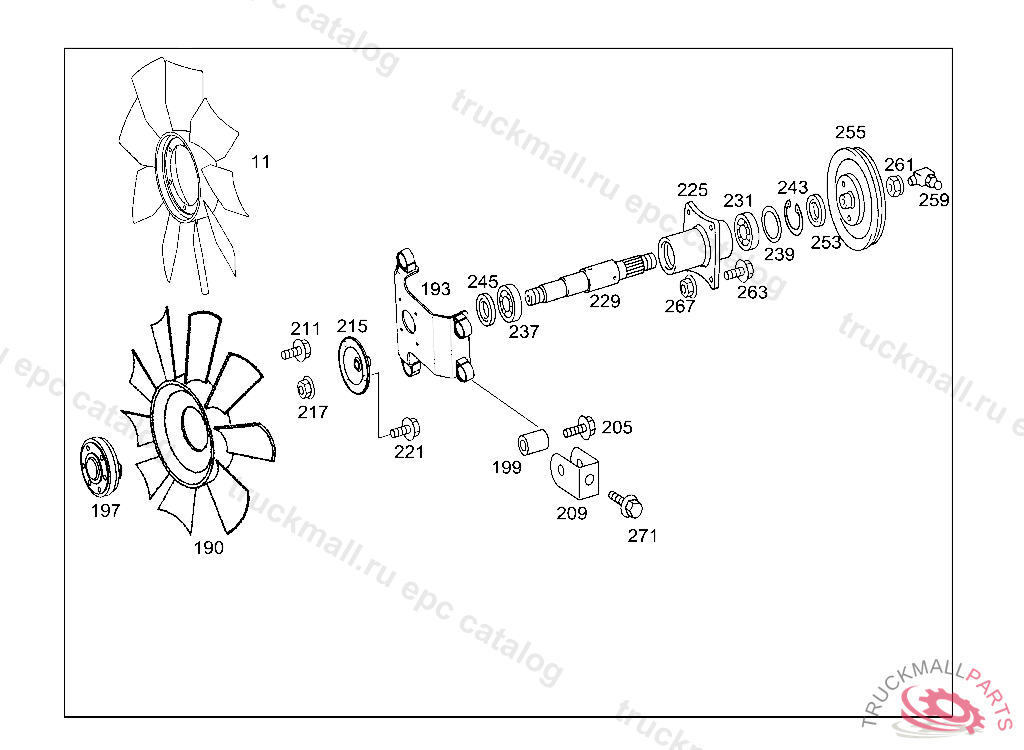

Mercedes A4752057202 - WELLE LUEFTERANTRIEB

O 500 RS / 1941/30 634.012

50 RADIATOR - 540 FAN DRIVE IL. 4

Поз.
Артикул
Описание
11
A4752050706
FAN
193
A3685005427
197
A4762000622
199
A3685000012
RUBBER BUSHING
205
N910105014009
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
209
A3685000046
RETAINING CLIP
211
N910105008008
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
215
A4752057504
HUB ,D 276362
217
N000000005767
HEXAGON NUT TRAILER COUPLING TO REAR CROSS MEMBER M20X1.5
221
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
225
A4752057005
BEARING BODY FAN DRIVE
229
A4752057202
FAN SHAFT ,D 276362
231
A6649813025
BALL BEARING FAN DRIVE
237
N000625006205
BALL BEARING. GROOVED BALL BEARING FAN DRIVE,D 276362
239
A4752067476
WASHER
243
N000472062000
LOCK RING
245
N006504035100
RADIAL SEAL RING
253
A6649973047
SEAL RING FAN DRIVE
255
A4752057510
PULLEY FAN DRIVE
259
N071412008100
GREASE NIPPLE INTERMEDIATE LEVER
261
N913004016004
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
263
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
267
N913023008003
NUT HORN TO BRACKET M8
