Поз.
Артикул
Описание

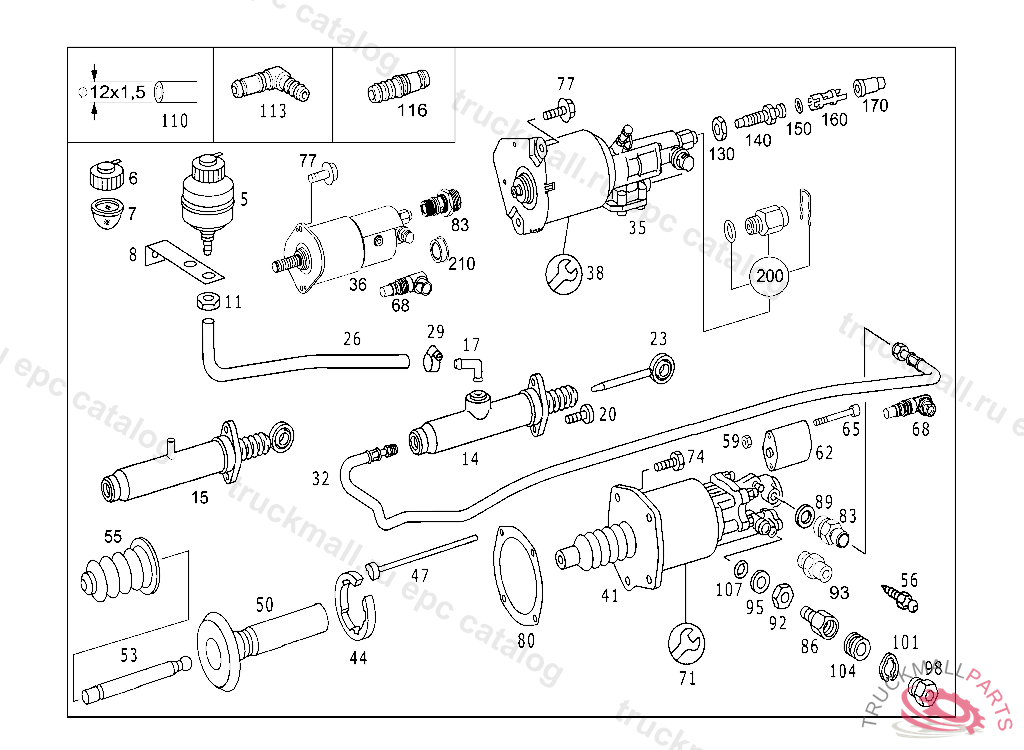

5
RESERVOIR (RESERVOIR)
6
FILLER CAP
7
STRAINERTO 364 431 70 02
8
BRACKET
11
NUT BRACKET TO SIDE MEMBER
15
CLUTCH MASTER CYLINDER QUICK-RELEASE
17
INTERMEDIATE PIECE , Replaced By: A0002950036
20
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
20
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
26
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
29
CLAMP LINE CONNECTION
32
35
CLUTCH BOOSTER
35
CLUTCH BOOSTERWABCO
36
CLUTCH ACTUATOR PNEUMATIC
36
CLUTCH BOOSTER , Replaced By: A0002501562, +001A0029972771
44
BRACKET
50
PISTONTO A 000 295 13 18
55
BOOT ,5 962906, Replaced By: A0002955683
56
VALVE , Replaced By: A6314230065
65
68
SENDER UNIT TRAVEL SENSOR
71
71
REPAIR KIT BELL HOUSING AND CLUTCH ACTUATION WABCO, Replaced By: A0002501062
71
77
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
77
SCREW PLATE TO FRAME M 10X45
83
SCREW-IN FITTING. FITTING COMPRESSED-AIR LINE FOR TRANSMISSION TO CLUTCH BOOSTER
83
FITTING PARTS KIT
86
ADAPTER FITTING AT BRAKE LINE COUPLING
89
SEAL RINGTO 000 553 03 05,000 553 18 05,
92
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
93
FITTING
95
THRUST RING LOCKING VALVE
95
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
95
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
107
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
110
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
113
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM, VOSS 232
116
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 9 MM, VOSS 232
130
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
140
SCREW WEAR INDICATOR
150
SEAL RING WEAR INDICATOR
160
POINTER
170
CAP WEAR INDICATOR
200
FITTING COMPRESSED-AIR LINE FOR TRANSMISSION TO CLUTCH BOOSTER
210
CARTRIDGE
