Mercedes A6344901201 -

O 500 RS / 1941/30 634.012

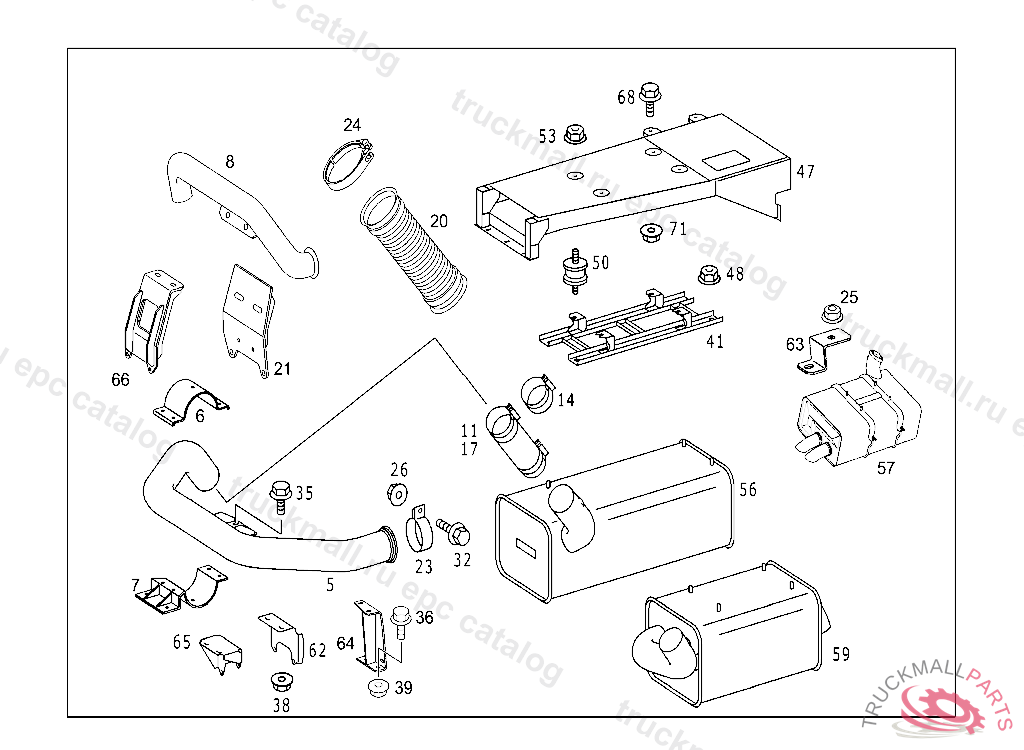

49 EXHAUST SYSTEM - 030 EXHAUST PIPE TO SUBSTRUCTURE IL. 1

Поз.
Артикул
Описание
5
A6344900919
5
A6344900819
6
A6344920840
7
A6344900841
20
A6344900565
23
A6344920340
CLAMP AT EXHAUST PIPE
24
A6939970190
25
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
26
N910112010001
NUT , Replaced By: N913023010002
32
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
35
N910105008039
SCREW , Replaced By: N910143008002
35
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
47
A6344900834
47
A6344900934
50
A6349980041
BUFFER
53
N910112010001
NUT , Replaced By: N913023010002
57
A6344901201
57
A6344901001
57
A6344901301
57
A6344901401
62
A6344920041
63
A6344921441
64
A6344920741
68
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
71
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
71
N910112010001
NUT , Replaced By: N913023010002
