Поз.
Артикул
Описание

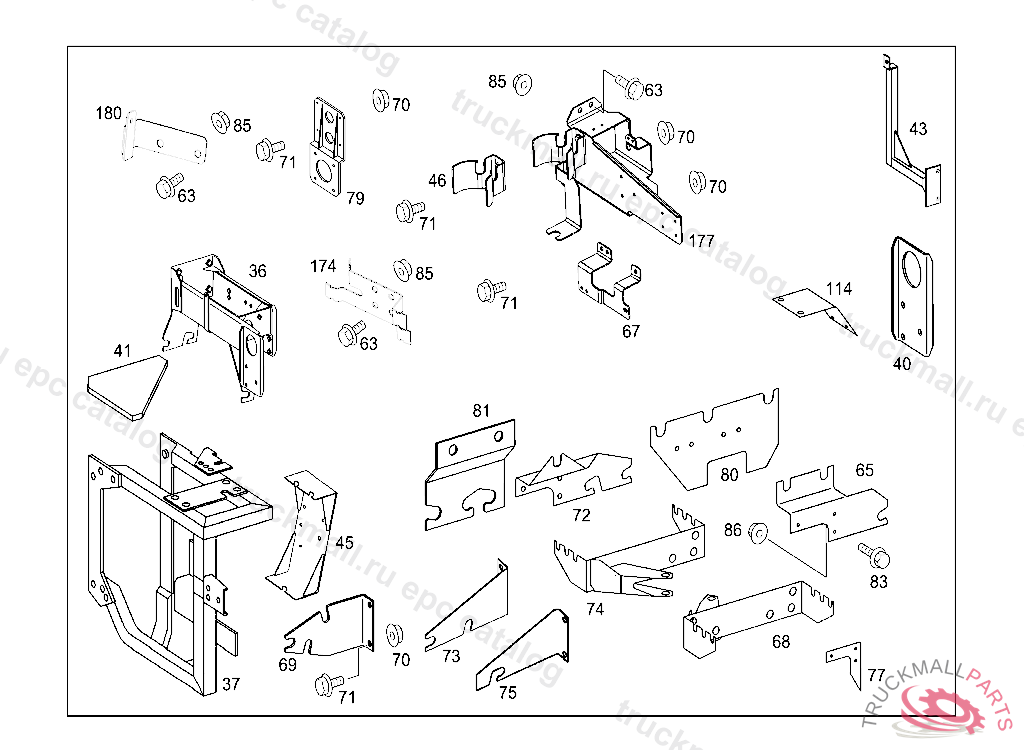

36
STOP VALVE CLUSTER TO SIDE MEMBER
37
40
41
43
46
BRACKET AIR RESERVOIR TO FRAME
63
HEXAGON HEAD BOLT TRAILER COUPLING TO FRONT CROSS MEMBER M16X1.5X45
65
BRACKET LEFT AIR RESERVOIR
67
BRACKET VALVE TO FRAME
68
68
69
70
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
70
NUT SUPPORT TO FRAME
70
HEXAGON NUT. NUT MOUNTING PARTS
71
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
71
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
71
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
71
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
71
SCREW. HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X35,V 207570
71
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
72
BRACKET RIGHT AIR RESERVOIR
73
74
75
77
79
80
81
83
SCREW BRACKET TO CAB REAR PANEL M 8X20
83
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
83
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M14X1.5X100
85
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
86
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
114
114
174
177
180
999
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
999
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
