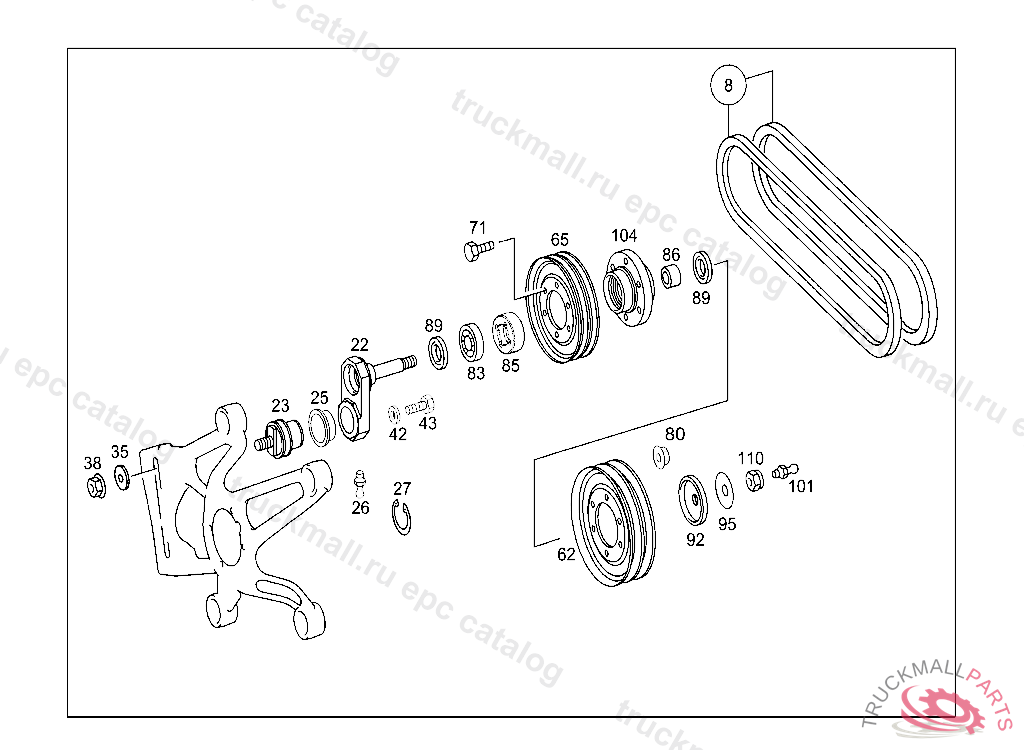

Поз.
Артикул
Описание
8
8
V-BELT FROM TIGHTENER PULLEY TO FAN DRIVE 1735 MM,D 434769
8
22
SHAFT , Replaced By: A3742000038
22
DRIVE SHAFT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3741500412
22
DRIVE SHAFT
23
BEARING JOURNAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3742340021
23
PIVOT PIN , Replaced By: A3742060020
23
BEARING JOURNAL
25
BUSHING
25
BUSHING , Replaced By: A3742050015
25
BUSHING
26
GREASE NIPPLE
27
LOCK RING P.T.O.
35
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
38
NUT CONSOLE TO SUPPORT
38
HEXAGON NUT WHEEL CYLINDER TO BRAKE ANCHOR,DISC BRAKE
42
PLANE PARALLEL WASHERTO A374 200 0038 - 52 X 9 X 2 MM
43
SCREW STOP TO BATTERY CASE
62
PULLEY BELT TIGHTENER PULLEY
65
PULLEY BELT TIGHTENER PULLEY
71
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
80
NUT HORN TO BRACKET M8
83
BALL BEARING BELT TIGHTENER PULLEY
83
BALL BEARING BELT TIGHTENER PULLEY
85
SPACER RING
86
SPACER TUBE BELT TIGHTENER PULLEY
89
SEAL RING BELT TIGHTENER PULLEY
92
EXPANSION PLUG BELT TIGHTENER PULLEY
95
LOCK BELT TIGHTENER PULLEY
101
GREASE NIPPLE INTERMEDIATE LEVER
104
HUB BELT TIGHTENER PULLEY
110
NUT CONSOLE TO SUPPORT
110
HEXAGON NUT WHEEL CYLINDER TO BRAKE ANCHOR,DISC BRAKE
999
WASHER , Replaced By: N000125008443
