Mercedes A6343121125 - QUERTRAEGER

0 500 RSD / 2442/2443/30 634.071

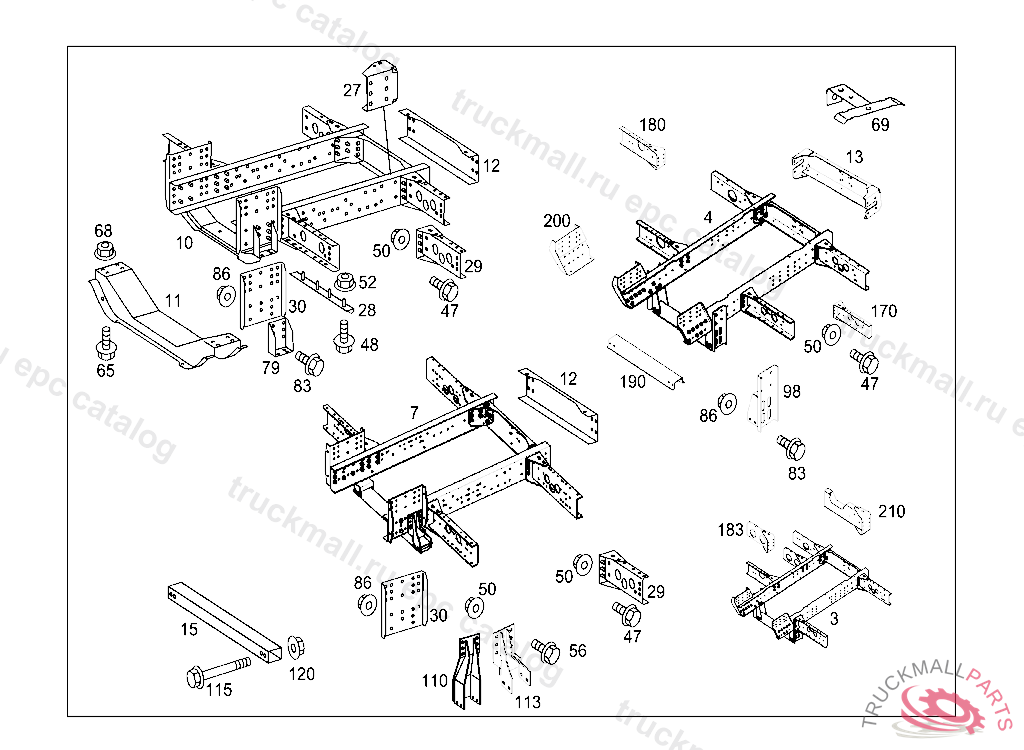

31 FRAME - 210 REAR FRAME AREA IL. 3

Поз.
Артикул
Описание
3
A6343109500
3
A6343109800
4
A6343109600
10
A6343109101
11
A6343120135
CROSS MEMBER
12
A6343120225
13
A6343121225
27
A6343122140
BRACKET REINFORCEMENT
27
A6343122440
BRACKET REINFORCEMENT
29
A6343100167
BODY SUPPORT
30
A6343110862
CONNECTION
47
N910105016008
HEXAGON HEAD BOLT. SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X90
47
N910105016012
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
47
N000000005542
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M16 X 1.5 X 50
50
N000000005738
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
56
N000000005535
HEXAGON HEAD BOLT AT FRAME, REAR M16X1.5X40
79
A6343121740
BRACKET
83
N000000005542
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M16 X 1.5 X 50
83
N000000005535
HEXAGON HEAD BOLT AT FRAME, REAR M16X1.5X40
86
N000000005738
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
98
A6343109009
98
A6343100631
170
A6343101267
180
A6343101167
183
A6343101667
190
A6343121125
200
A6343100152
210
A6343102667
