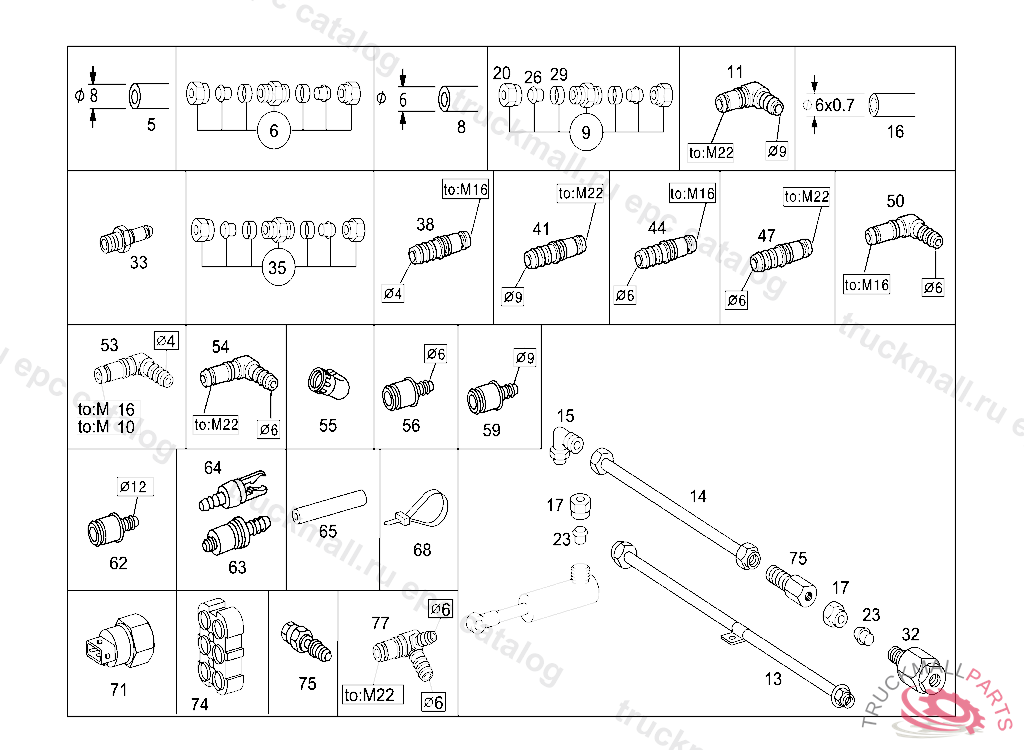

Поз.
Артикул
Описание
5
PLASTIC PIPE8X6 MM, ORDER BY THE METER
6
FITTING (PARTS KIT),LINE RUPTURE
8
PLASTIC PIPE RISING PIPE 4X6 MM
8
PLASTIC PIPE4X6 MM, ORDER BY THE METER
9
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
11
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
11
ELBOW FITTING , Replaced By: A0019908171
13
13
13
14
14
14
14
15
FITTING , Replaced By: A0019909871
15
ELBOW FITTING SINGLE CIRCUIT PISTON CYLINDER, CONNECTION:
16
LINE FROM PRESSURE REGULATOR TO T-FITTING 6X0.7 MM, ORDER BY THE METER
17
UNION NUT
17
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
20
UNION NUT LINE CONNECTION, Replaced By: N000000006239
20
UNION NUT LINE CONNECTION
23
GLAND , Replaced By: A0019901667
23
GLAND LINE CONNECTION
26
GLAND LINE CONNECTION
26
GLAND , Replaced By: A0019901967
29
SLEEVE LINE CONNECTION
29
SLEEVE LEAK LINE
29
SLEEVE LINE CONNECTION
32
THROTTLE HOUSING. FITTING
33
COUPLING "TOP-BRAKE"
35
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
38
CONNECTOR , Replaced By: A0029905378
38
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 9MM, VOSS 232
38
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, Replaced By: A0059977889
41
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
41
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM, VOSS 232
44
CONNECTOR , Replaced By: A0029905478
47
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 6MM, VOSS 232, Replaced By: A0049976989
47
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, 6MM, VOSS 232
47
CONNECTOR HOSE WIDTH, 6 MM, TO M22
50
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232, Replaced By: A0059972689
50
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 6 MM, VOSS 232
50
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM, VOSS 232
50
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINES TO M 16 / 4 MM ,VOSS 232,KAN 33/00 AS OF PRODUCTION BREAKPOINT DATE 01.01.2004
50
ELBOW FITTING , Replaced By: A0049905371
50
ELBOW FITTINGTO M10 / 4MM /VOSS 230
53
ELBOW FITTING , Replaced By: A0049971389
53
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
54
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
56
COUPLING6MM,D 283510
59
COUPLING LINE CONNECTIONS 12X1.5
62
COUPLING16X2/17,9MM
63
PLUG COMPRESSED AIR PIPING,YB227219
64
COUPLING COMPRESSED AIR PIPING,YB227219
65
INSULATING HOSE RED, ORDER BY THE METER
65
INSULATING HOSE8X0,01 MM
65
INSULATING HOSE COLOR CODE GREY,YB227219
65
INSULATING HOSE RED, ORDER BY THE METER
65
INSULATING HOSE
65
INSULATING HOSE CHECK VALVE,CONNECTION "2"
65
INSULATING HOSE COLOR CODE ORANGE 12X0.8 MM, ORDER BY THE METER
65
INSULATING HOSE COLOR CODE BROWN
65
INSULATING HOSE , ORDER BY THE METER
65
INSULATING HOSE COLOR CODE BLUE,YB227219
68
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
68
LOOM TIE AIR INTAKE HOSE TO CLAMP
68
LOOM TIE ELECTRIC CABLE MOUNTING
68
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
71
SWITCH PARKING BRAKE VALVE,CONNECTION: "11"
75
ADAPTER FITTING TEST CONNECTION
75
CONNECTOR , Replaced By: A0029905478
77
ADAPTER FITTING TEST CONNECTION
999
ADAPTER FITTING CENTRAL AND REAR AXLES
