Mercedes A0182506103 - LU KUPPLUNGSSCHEIBE

IBC 1836 / OC 500 RF 634.150

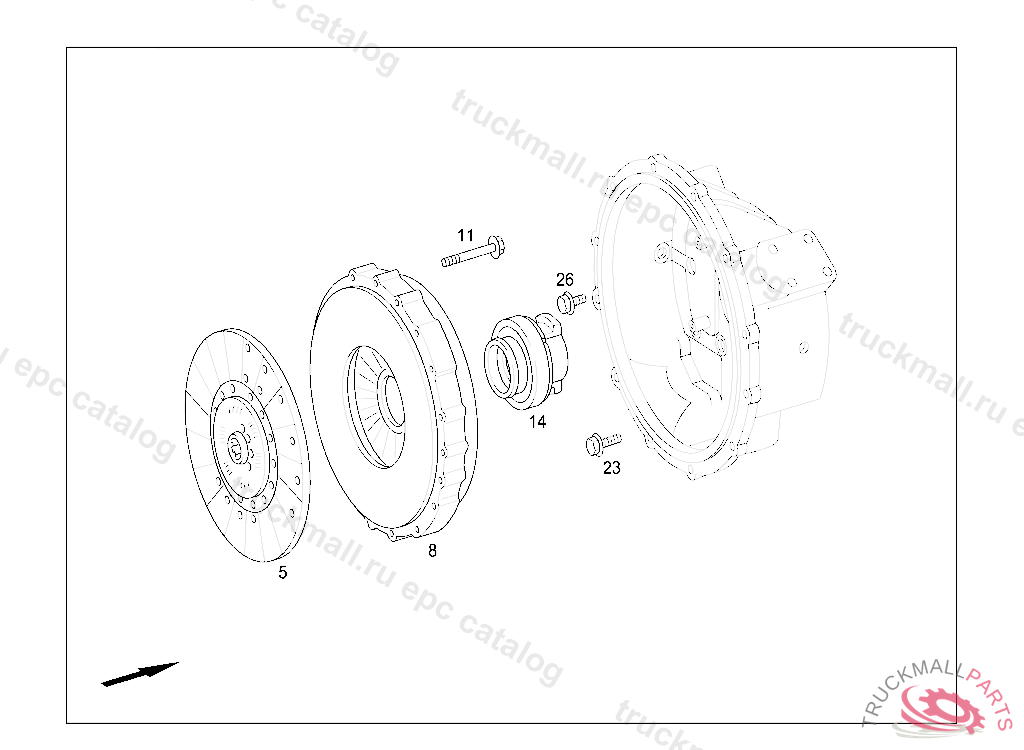

25 CLUTCH - 300 CLUTCH PRESSURE PLATE AND CLUTCH DISC IL. 1
  • Поз.
    Артикул
    Описание
  • 5
    CLUTCH DISC
  • 5
    CLUTCH DISC
  • 5
    CLUTCH DISC2/OM457LA, Replaced By: A0202505503
  • 8
    CLUTCH PRESSURE PLATE
  • 8
    CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
  • 11
    HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
  • 14
    RELEASE BEARING
  • 23
    HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
