Главная
›
Mercedes
›
BUS
›
IBC 1836 / OC 500 RF
›
634.150
›
32 SPRINGS AND SUSPENSION
›

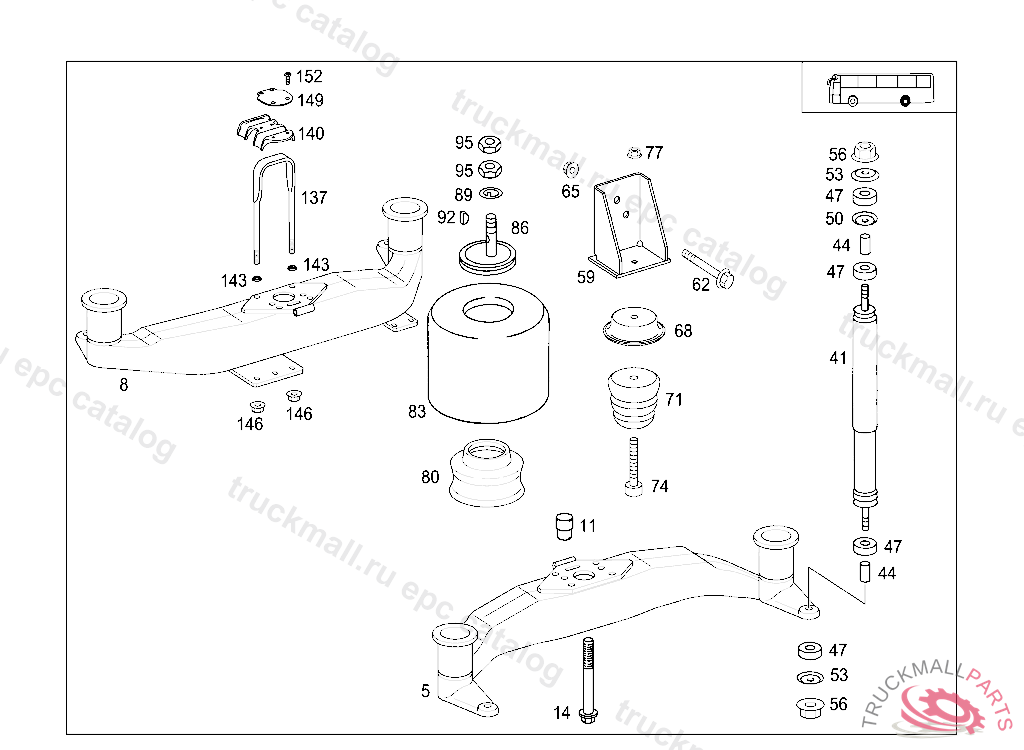

560 PNEUMATIC SUSPENSION & STABILIZATION ON REAR AXLE IL. 1
Mercedes A6343250031 - ANSCHLAG-HINTERFEDER
IBC 1836 / OC 500 RF 634.150
32 SPRINGS AND SUSPENSION - 560 PNEUMATIC SUSPENSION & STABILIZATION ON REAR AXLE IL. 1
Поз.
Артикул
Описание
5
A6343200075
5
A6343200375
SPRING BRACKET LEFT
8
A6343200475
SPRING BRACKET RIGHT
8
A6343200075
11
A6293250074
PIN
14
A0039900522
SCREWM24X2X235
41
A3563260700
SHOCK ABSORBER
44
A3179911040
SPACER TUBE FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
47
A3073230044
RUBBER BUFFER
50
A6293260067
RETAINER
53
A3173230667
RETAINER
56
N000000005585
HEXAGON NUT BRACKET TO SIDE MEMBER M14 X 1,5
59
A6343200029
STOP HELPER SPRING, Replaced By: A6343250031
59
A6343250031
PLATE HELPER SPRING
62
N000000005718
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
65
N000000005662
NUT SUPPORT TO FRAME
65
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
68
A6293250015
SPRING CASE
71
A6293200077
RUBBER SPRING
74
N000912012214
SCREW CLAMPING BOLT TO ALTERNATOR M 12X1,5X60
77
N910113012003
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
80
A3573201534
SUPPORT AIR SPRING BELLOWS,BOTTOM
80
A3573200134
SUPPORT FRONT AXLE AIR SPRING BELLOWS
83
A0003200321
AIR SPRING BELLOWSBL121
83
A0003270201
AIR SPRING BELLOWS TRAILING AXLE LIFT
83
A0003270101
AIR SPRING BELLOWS REAR AXLE
