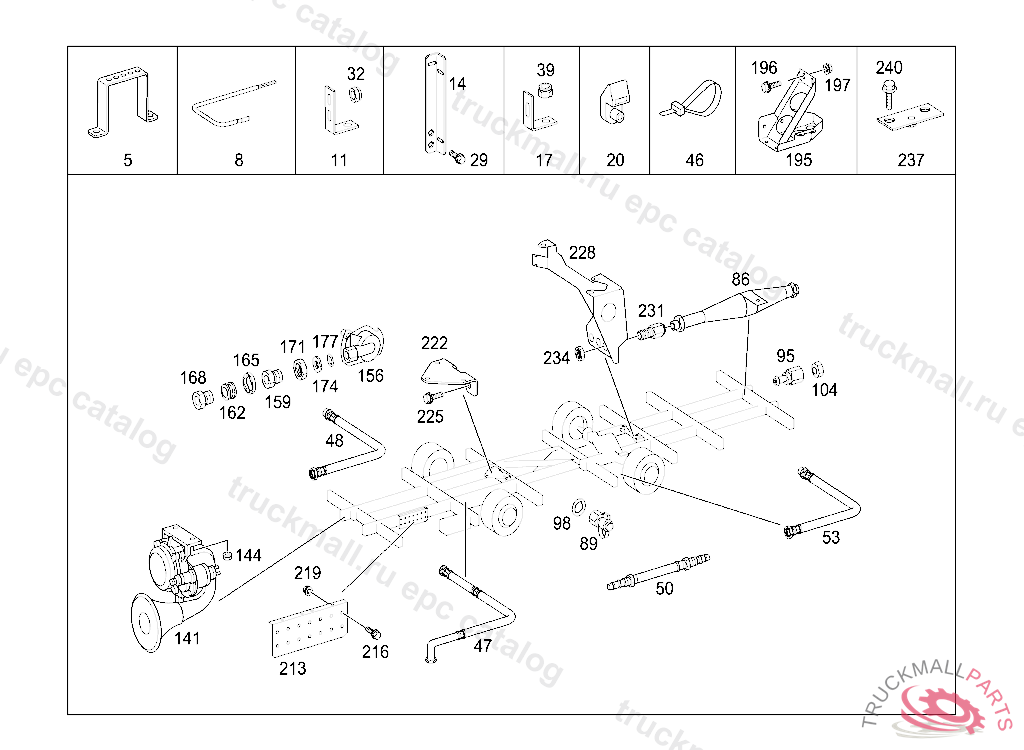

Поз.
Артикул
Описание
5
BRACKET LINE MOUNTING
8
BRACKET LINE MOUNTING
11
BRACKET
14
14
17
BRACKET
20
BRACKET ELECTRIC CABLE MOUNTING
29
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M16X1.5X30
29
SCREW FRONT SPRINGS TO FRONT AXLE
32
NUT COVERING TO CAB FIRE WALL
32
NUT HORN TO BRACKET M8
39
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
39
NUT BRACKET TO SIDE MEMBER M12X1.5
46
CABLE TIE IONIC EXCHANGER 380X7.8MM
46
CABLE TIE LINE MOUNTING 375X8.4MM
47
BRAKE HOSE LEFT
50
BRAKE HOSE REAR AXLE BRAKE CIRCUIT TO VOSS 230, 1720 MM
53
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
86
MUFFLER FROM AIR COMPRESSOR TO PRESSURE REGULATOR,095094 UP TO IDENT NO.099977, INOLTRE MONTATO IN 099368,099369
89
TEST CONNECTION
89
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
89
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
89
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
89
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
95
TEST CONNECTION
104
NUT BULKHEAD FITTING TO BRACKET
141
AIR HORN
141
AIR HORN
144
NUT COVERING TO CAB FIRE WALL
156
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
159
ADAPTER FITTING AT BRAKE LINE COUPLING
162
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
165
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
168
SCREW. UNION SCREW LINE CONNECTION
171
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
174
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
177
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
213
BRACKET TEST CONNECTIONS
