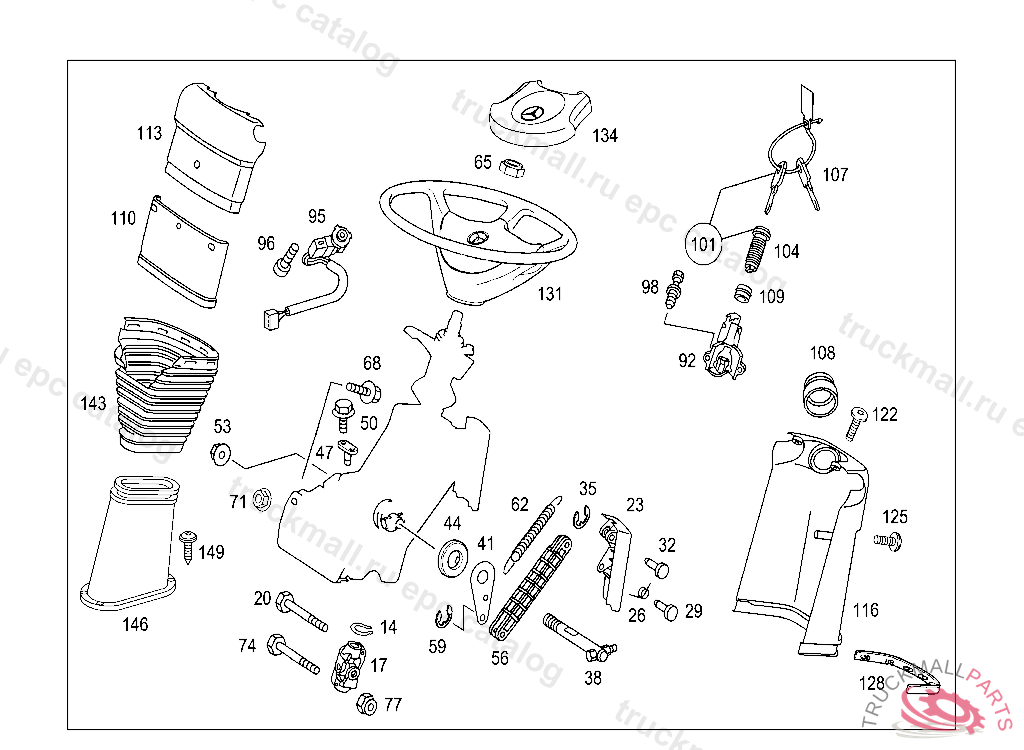

Поз.
Артикул
Описание
14
LOCK RING 26X1,2 DIN 471. LOCK RING
17
UNIVERSAL JOINT ,5 463985
17
UNIVERSAL JOINT ,5 463985
20
SCREW STEERING SHAFT TO STEERING M 8X42
23
HANDLE , NO.5B21I.........I.........I I II .........INO.5C38I.........I I II
26
SPRING
29
PIN8X35 MM
32
PIN8X28 MM
35
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
35
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
38
PIN
41
LEVER
44
NEEDLE BEARING
47
BALL GUIDE
50
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
53
HEXAGON NUT
56
LEVER
59
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
59
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
62
SPRING
65
NUT STEERING WHEEL TO STEERING COLUMN
65
NUTM20, Replaced By: A9709900051
65
NUT ROD TO TORSION BAR
68
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
71
NUT ENGINE MOUNTING M8
74
SCREW STEERING SHAFT TO STEERING M 8X42
77
NUT STRAP TO BRACKET
92
STEERING LOCK
92
STEERING LOCK
95
SWITCH
96
SCREW SWITCH BOX TO STEERING LOCK
98
SCREW (BREAK-OFF BOLT),STEERING LOCK MOUNTING
101
TUMBLER , LOCKING SYSTEM, SEE GROUP 72, Replaced By: A6708906367
101
TUMBLER , LOCKING SYSTEM, SEE GROUP 72, Replaced By: A0004620179
101
TUMBLER. STEERING LOCK
101
OUTFIT(LOCK,KEY,HANDLE) STEERING WHEEL LOCK W. KEY SET, WORKSHOP VERSION, OPTIONAL LOCKING, LOCKING SYSTEM, SEE GROUP 72V 202043
104
TUMBLER STEERING LOCK, LOCKING SYSTEM, SEE GROUP 72V 202043 STATE LOCK NUMBER WHEN ORDERING THEFT-RELEVANT PART
107
KEY
107
KEY , STATE LOCK NUMBER WHEN ORDERING
108
PROTECTIVE CAP STEERING LOCK,V 202043
109
PROTECTIVE CAP STEERING LOCK
110
110
COVERING STEERING COLUMN PANELLING, .......I.......INO.5C38I I II I
113
113
SHELL STEERING COLUMN PANELLING, .........INO.5C38I.........I I II
116
SHELL STEERING COLUMN PANELLING, NO.5B21I.........I.........I I II
116
SHELL STEERING COLUMN PANELLING,V 202043V 208695 .........INO.5C38I.........I I II
116
122
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
125
HEXALOBULAR BOLT PLUG SOCKET TO REAR CROSS MEMBER
128
STRAP COVERING TO STEERING COLUMN BEARING, NO.5B21I.........I.........I I II NO LONGER AVAILABLE
131
STEERING WHEEL (AIRBAG) 500MM, .......INO.5C38I.......I I II
134
COVERING STEERING WHEEL, I WHEN ORDERING, INDICATE IN ADDITION THE COLOR CODE NUMBERS: I ANTHRACITE I I I I II NO.9B50I I I I II I
143
BOOT STEERING COLUMN COVERING,TOP, NO.9B51 IIIIII INO.7C45 IIIII I
146
COVERING
149
TAPPING SCREW
