Mercedes
›
BUS
›
IBC 1836 / OC 500 RF
›
634.150
›
29 PEDAL ASSEMBLY
›

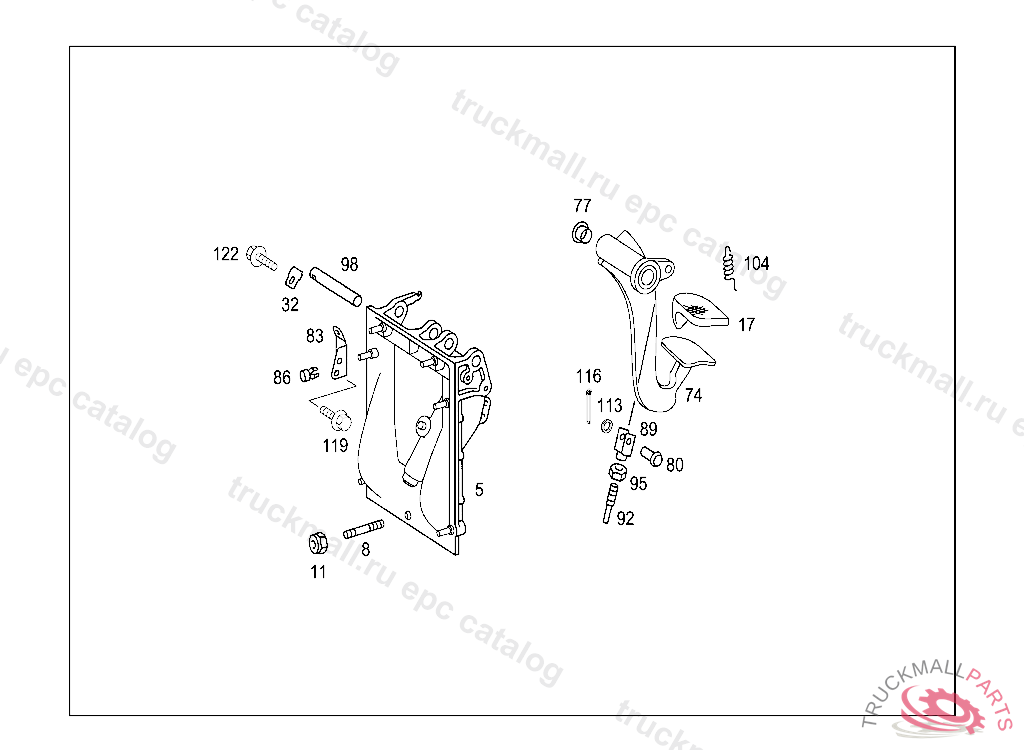

090 CLUTCH AND BRAKE PEDAL ASSEMBLY IL. 2
Mercedes N000094002059 - ШПЛИНТ
IBC 1836 / OC 500 RF 634.150
29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY IL. 2
Поз.
Артикул
Описание
5
A6342900419
BEARING BRACKET (PEDAL BEARING BRACKET)
8
A6732940270
STUD
11
N913023008003
NUT HORN TO BRACKET M8
17
A1072910182
PAD BRAKE
32
A6732920073
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
74
A6342900118
PEDAL BRAKE
77
A1102910550
BUSHING , Replaced By: A1242920050
80
A3852920174
PIN ROD TO BRAKE PEDAL
83
A6732920030
STOP BRAKE PEDAL
86
A1232910286
STOP BRAKE PEDAL
89
N071752008002
YOKE OPERATING ROD
92
A6732920032
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
95
N304032008006
NUT
98
A6732940174
PIN BRAKE PEDAL TO BEARING BRACKET
104
A6739930110
SPRING BRAKE PEDAL RELEASE SPRING
113
N000433008403
WASHER PULL ROD TO SHIFT LEVER
116
N000094002060
COTTER PIN LEVER TO ROD
116
N000094002059
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
119
N910105006002
HEXAGON HEAD BOLT
122
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
122
N910105006004
SCREW , Replaced By: N914146006102
