Mercedes N304032008006 - ГАЙКА М8

IBC 1842 634.160

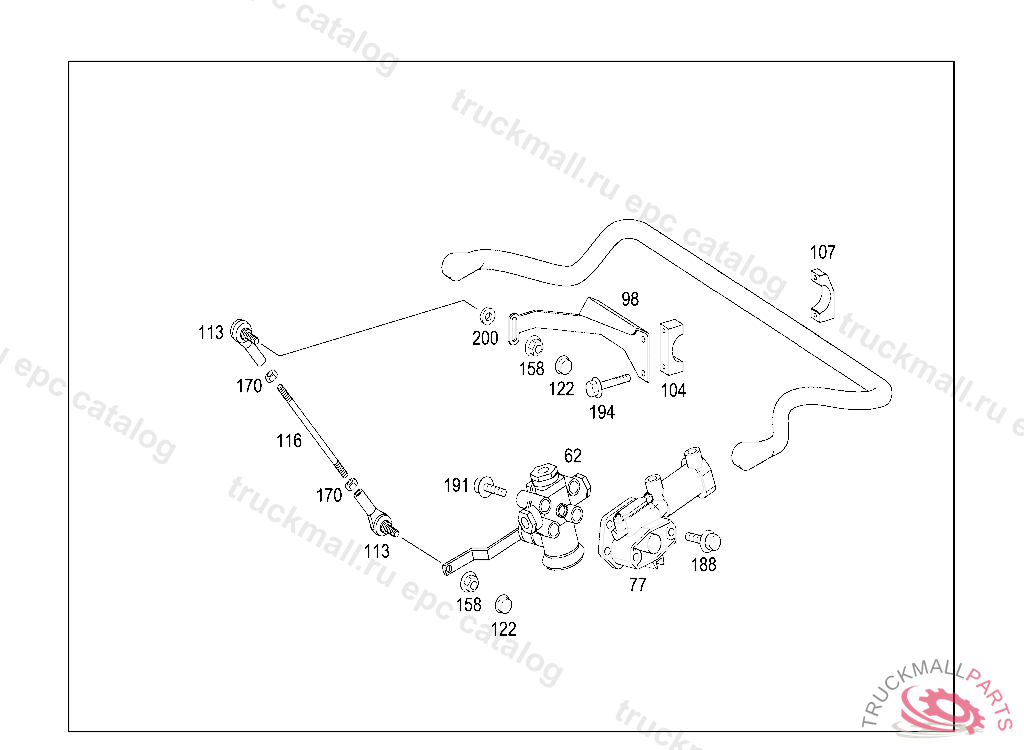

26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS IL. 4

Поз.
Артикул
Описание
62
A0003278825
VALVE FRONT AXLE
77
A0003277625
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
98
A6343270027
LEVER FRONT AXLE
104
A6293270021
COVER
107
A6293270121
COVER
113
A0019962545
ANGLE JOINTA13
113
A0003280063
JOINTA13, Replaced By: A0019962545
116
A6293280634
RODM8/160LG
122
N913018013202
PROTECTION CAP MOUNTING TO BODY
158
N913023008003
NUT HORN TO BRACKET M8
158
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
158
N913023008002
NUT ENGINE MOUNTING M8
170
N304032008006
NUT
188
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
188
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
191
N910105008038
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
194
N910143008017
SCREW 3/2-WAY VALVE TO BRACKET
194
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
200
N000125008445
WASHER PUMP TO CONSOLE
200
N009021008205
WASHER , Replaced By: N009021008213
