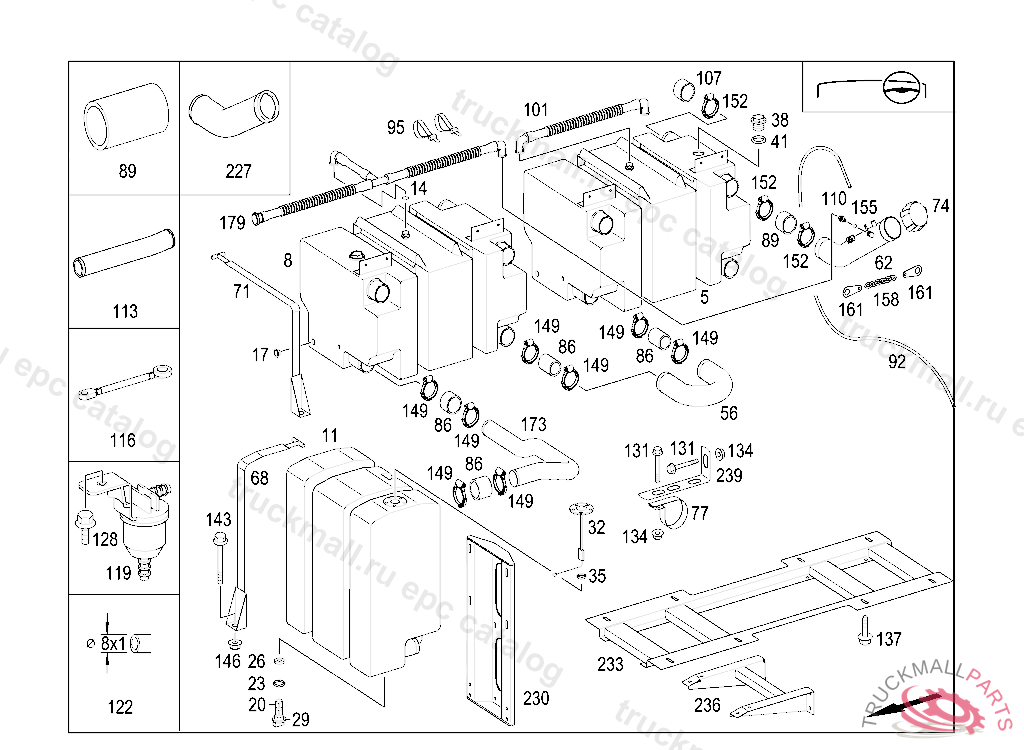

Поз.
Артикул
Описание
5
FUEL TANK145L
5
8
8
FUEL TANK145L
11
11
FUEL TANK125L
14
SEAL RING
17
SEAL F FILLER NECK. GASKET
20
FILTER ELEMENT
23
SEAL RING
26
GASKET22X18X1,5
29
FITTINGM18X1,5
32
32
SENDER UNIT FUEL GAUGE SENDER UNIT
35
GASKETTO 612 470 22 01
38
FASTENER
41
SEAL RING
68
STRAP
71
STRAP
74
FILLER CAP
86
HOSE FUEL HOSE 100MM
89
HOSE
89
HOSE , Replaced By: A6284762426
95
CABLE TIE IONIC EXCHANGER 380X7.8MM
95
CABLE TIE LINE MOUNTING 375X8.4MM
107
COVER
113
LINE
116
GROUND STRAP , Replaced By: A1155400341
119
VALVE DE-AERATION,618 115 13 091995, 618 215 11 092223
122
PLASTIC PIPE AERATION, ORDER BY THE METER
128
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
131
SCREW SHIFT LEVER TO BRACKET M8X30
134
NUT HORN TO BRACKET M8
137
SCREWM 10X20
143
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
146
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
149
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
152
CLAMP
155
SEAL RING
158
CHAIN2X12MM
161
EYE
