Главная
›
Mercedes
›
BUS
›
IBC 2242
›
634.161
›
32 SPRINGS AND SUSPENSION
›
060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 4
Mercedes A6343280408 - КРЕПЛЕНИЕ

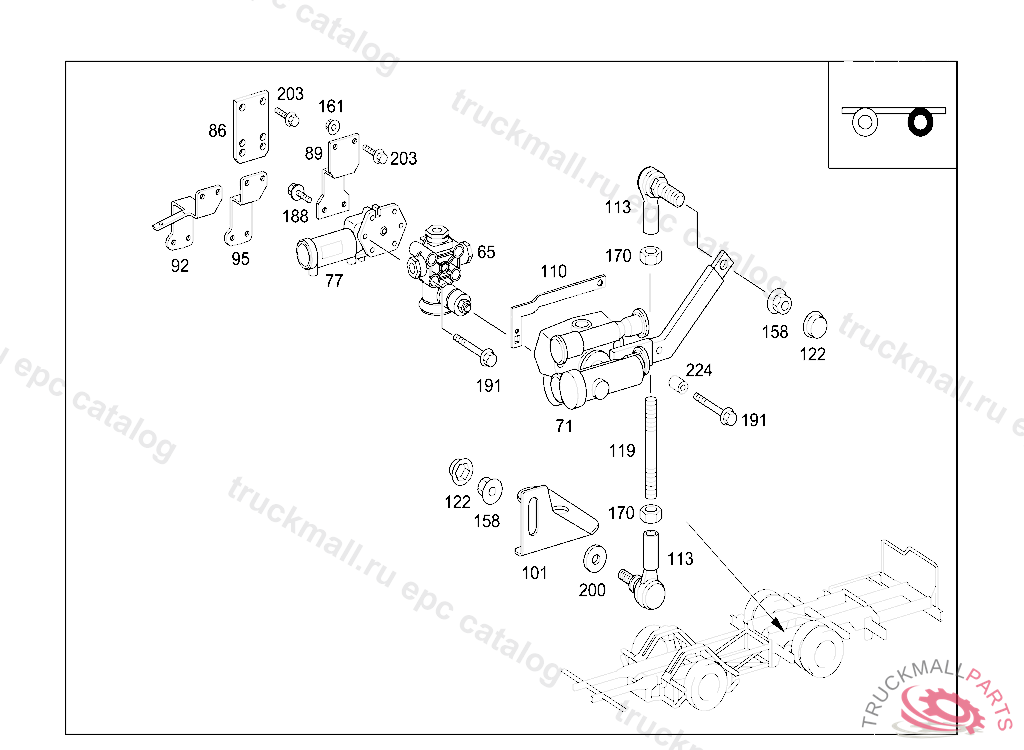

IBC 2242 634.161
32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 4
Поз.
Артикул
Описание
65
A0003285030
VALVE REAR AXLE
86
A6343280040
101
A6343280408
ANGLE REAR AXLE,LEFT
101
A6343280508
ANGLE REAR AXLE,RIGHT
110
A6343280127
LEVER RIGHT AIR SPRING VALVE
110
A6343280027
LEVER LEFT AIR SPRING VALVE
113
A0019962545
ANGLE JOINTA13
113
A0003280063
JOINTA13, Replaced By: A0019962545
119
A0003280034
ROD FROM AIR SPRING VALVE TO FRONT AXLE 8 X 90 MM
122
N913018013202
PROTECTION CAP MOUNTING TO BODY
158
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
158
N913023008003
NUT HORN TO BRACKET M8
158
N913023008002
NUT ENGINE MOUNTING M8
161
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
170
N304032008006
NUT
191
N910105008038
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
200
N000125008445
WASHER PUMP TO CONSOLE
203
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
