Mercedes A0003278025 - LUFTFEDERVENTIL

TOURO REISEBUS AUF IBC 634.203

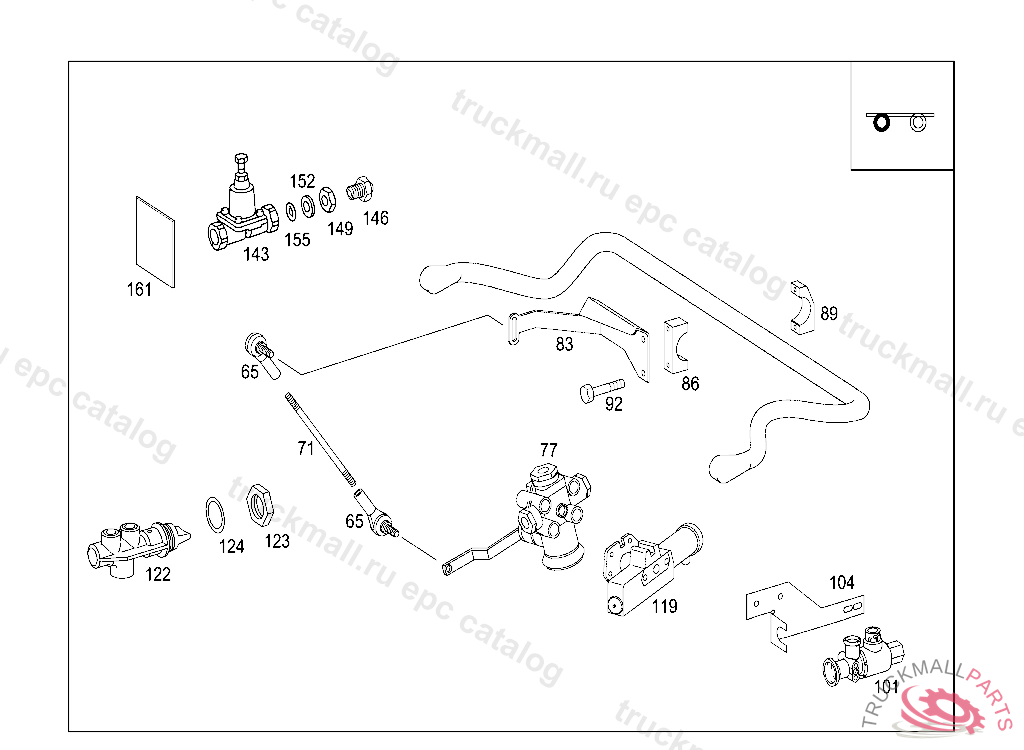

32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 2

Поз.
Артикул
Описание
65
A0019962545
ANGLE JOINTA13
65
A0003280063
JOINTA13, Replaced By: A0019962545
71
A6293280634
RODM8/160LG
77
A0003278025
VALVE
77
A0003279225
VALVE FRONT AXLE
83
A6343270027
LEVER FRONT AXLE
86
A6293270021
COVER
89
A6293270121
COVER
92
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
92
N910143008017
SCREW 3/2-WAY VALVE TO BRACKET
101
A0059970436
SOLENOID VALVE ELECTRONIC TRACTION SYSTEM WABCO
104
A6344290740
BRACKET LEFT
104
A6344290840
BRACKET RIGHT
119
A0003277625
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
122
A0003277725
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
123
A0049906351
NUT VALVE TO BRACKET
124
A0059903940
WASHER
143
A0034294244
VALVE (OVERFLOW VALVE)
143
A0003202158
VALVE OVERFLOW VALVE 0,5BAR
146
A0079977772
FITTINGM16X1.5/M22X1.5/M16X1.5
149
N074305022202
NUT CHECK VALVE TO AIR RESERVOIR
152
A0004290227
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
152
A0009940203
THRUST RING CHECK VALVE TO AIR RESERVOIR
155
A0139972248
SEAL RING LINE CONNECTION
155
A0009870446
O-RING CHECK VALVE TO AIR RESERVOIR
161
A6344230620
PROTECTIVE PLATE RIGHT
161
A6344230520
PROTECTIVE PLATE LEFT
