TOURO REISEBUS AUF IBC
634.203
82 ELECTRICAL SYSTEM
130 HEADLAMPS,BLINKER-AND-POSITION LAMPS, FRONT, SIDE REFLECTORS

Mercedes A0008267184 - SPRING

TOURO REISEBUS AUF IBC 634.203

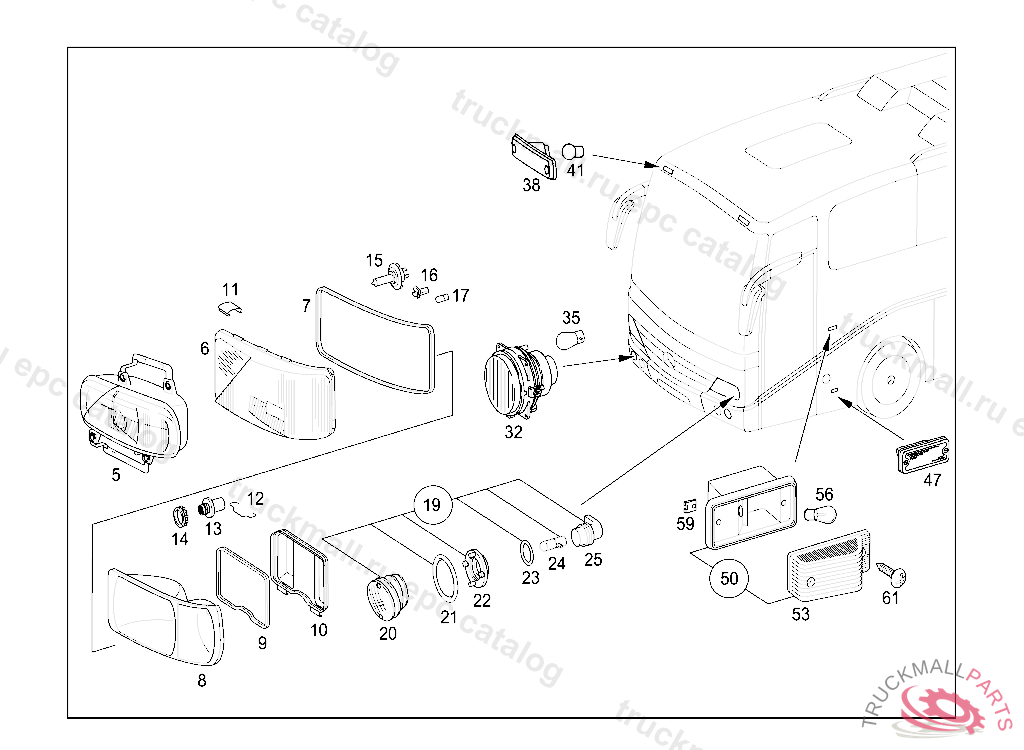

82 ELECTRICAL SYSTEM - 130 HEADLAMPS,BLINKER-AND-POSITION LAMPS, FRONT, SIDE REFLECTORS

Поз.
Артикул
Описание
5
A0028205461
HEADLAMP TEMPERED,LEFT
5
A0028205561
HEADLAMP TEMPERED,RIGHT
5
A0028203661
LIGHTING UNIT RIGHT, Replaced By: A0028205561
5
A0028203561
LIGHTING UNIT LEFT, Replaced By: A0028205461
6
A0028221910
LIGHT-DIFFUSING GLASS RIGHT
6
A0028222010
LIGHT-DIFFUSING GLASS LEFT
7
A0018265180
SEAL
8
A0008260188
REFLECTOR RIGHT
8
A0008260088
REFLECTOR LEFT
9
A0018265280
SEAL
10
A0008264024
COVERING LEFT
10
A0008264124
COVER RIGHT
11
A0008267084
SPRING
12
A0008267184
SPRING
13
A0008260126
PLUG
14
A0005460522
NUT. CLAMPING RING
15
N072601024802
BULB24 V/70-75 W
16
N072601024270
BULB24V,70W
17
N072601024250
BULB24V-5W
19
A6668200158
SIGNAL LAMP LEFT AND RIGHT FRONT
20
A0028220010
LENS
21
A0008262291
SEAL RING
22
A0008260068
SEAL
23
A0129972645
SEAL RING
24
N000000000065
YELLOW BULB TAILLAMPS 24V-21W
25
A0018262982
LAMP SOCKET
32
A6138200361
HEADLAMP ADDITIONAL FLOODLIGHT
35
N072601014270
BULB
38
A0008264747
SIDE MARKER LAMP (POSITION LAMP) FRONT TOP,WITHE, Replaced By: A0008264947
41
N072601024704
BULB WITH REINFORCED COILED FILAMENT 24 V/10 W
47
A0028208856
EXTERIOR LAMP (SIDE MARKER LAMP),AMBER, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
50
A0008200620
BLINKER LAMP RIGHT
50
A0008200520
BLINKER LAMP RAMP WARNING SYSTEM
53
A0028221410
LENS RIGHT
53
A0028221310
LENS LEFT
56
N072601024190
BULB , Replaced By: N072601024192
59
A0009942545
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
61
N000000000819
TAPPING SCREW. SCREW4,2X38
61
N000000000456
TAPPING SCREW CLOTHES-HOOK TO BODY
999
A6296880008
COVERING
999
A0008264524
COVER
