Mercedes A6294900610 - Труба выхлопная

TOURO REISEBUS AUF IBC 634.203

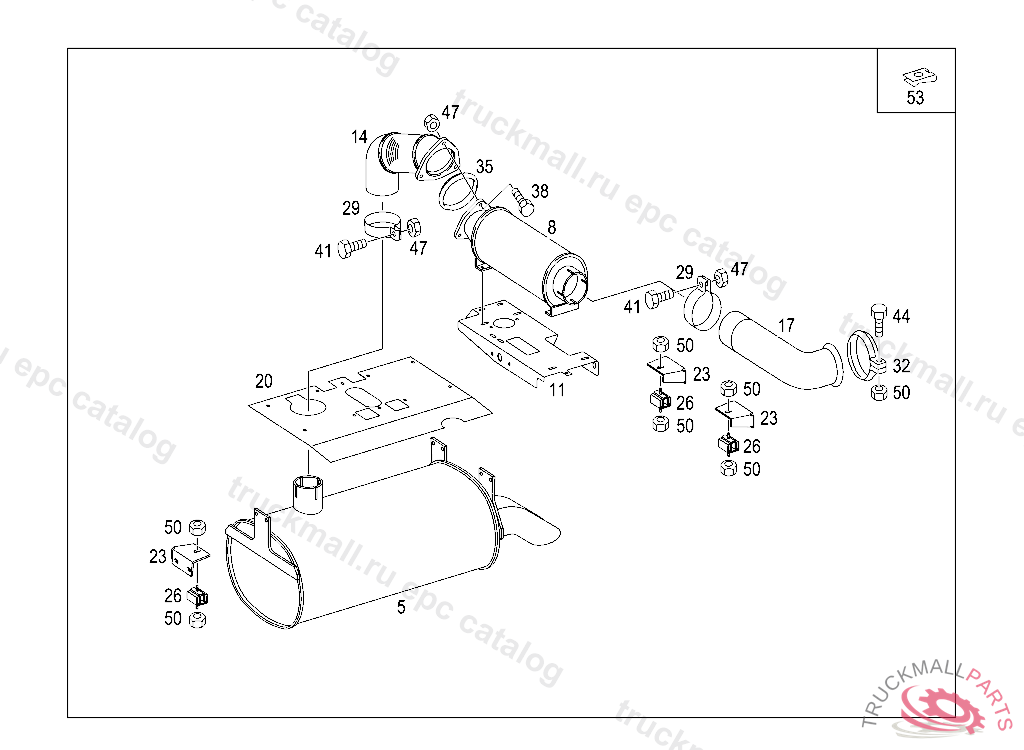

49 EXHAUST SYSTEM - 001 EXHAUST SYSTEM IL. 1

Поз.
Артикул
Описание
5
A6294910300
MUFFLER. EXHAUST MUFFLER
8
A6294910400
MUFFLER
11
A6294910015
CONSOLE
14
A6344900310
EXHAUST PIPE
17
A6294900610
EXHAUST PIPE
20
A6348350181
INSULATION
23
A6294910041
BRACKET
26
A0004910285
RUBBER MOUNTING
29
A6294910040
CLAMP
29
A0004921240
CLAMP EXHAUST SYSTEM D124,5MM, Replaced By: A6554920140
32
A9429970290
CLAMP FRONT EXHAUST PIPE TO THROTTLE HOUSING
35
A6294920080
FLANGE GASKET EXHAUST LINE FLEXIBLE METAL TUBE
38
N910105012021
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
41
N910105012020
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
44
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
47
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
47
N000000003276
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
50
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
53
A0049941745
LOCK NUT. SPRING NUT STEP TO ENTRANCE
