Mercedes N071412008300 - Ниппель

IBC-FAHRGESTELL-BUGGY 2-ACHSER NAFTA 634.300

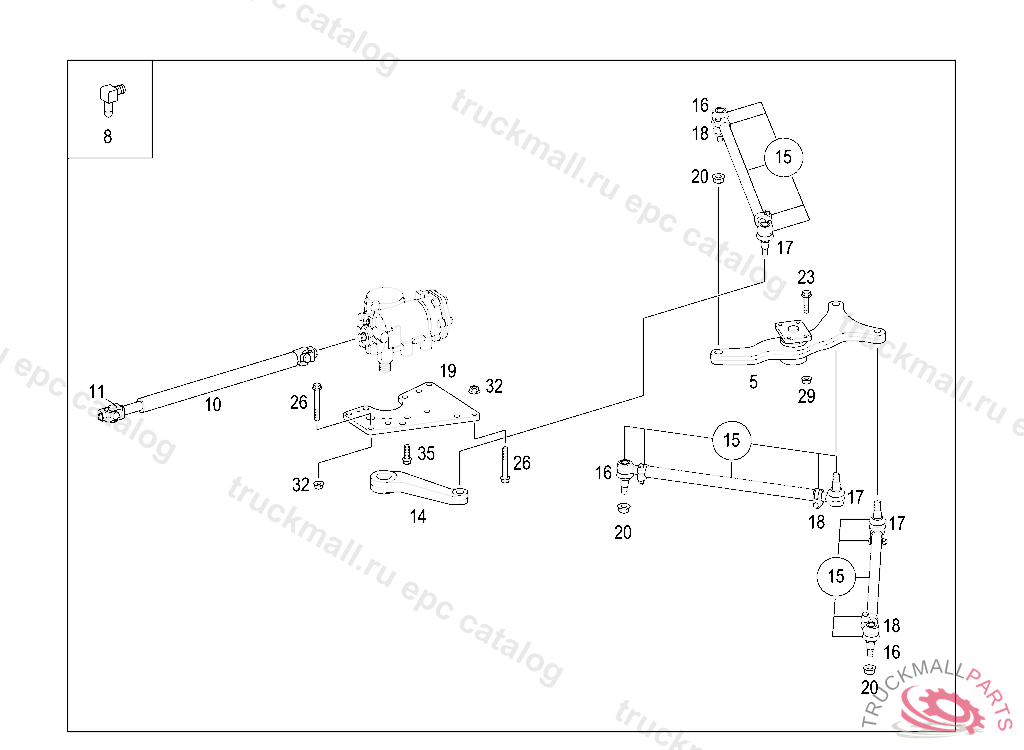

46 STEERING - 390 STEERING ARM AND DRAG LINK

Поз.
Артикул
Описание
5
A6344600119
8
N071412008300
GREASE NIPPLE
10
A6274600011
STEERG. WORM SECTOR SHAFT
11
A0004112311
DRIVE FLANGE
14
A6344630001
PITMAN ARM
15
A6343300003
TIE ROD
16
A0004608948
DRAG LINK END R.H. THREAD
17
A0014603648
DRAG LINK END L.H. THREAD TO A 662 463 12 15
18
A0004601264
CLAMP
19
A6344610329
PLATE
20
A0019905451
NUT DRAG LINK END M 24X1.5
23
N910105014019
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
23
N000000005721
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
26
N000000005567
HEXAGON HEAD BOLT STEERING BRACKET TO FRAME M18X1.5X120,V 207570
26
N910105018031
HEXAGON HEAD BOLT BEARING BRACKET TO FRAME M18X1.5X120
29
N000000005662
NUT SUPPORT TO FRAME
29
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
32
N913023018002
NUT RETARDER HOUSING TO TRANSMISSION CASE
32
N000000005739
NUT TRAILER COUPLING TO FRONT CROSS MEMBER M18X1.5
35
A0159901401
SCREWM20X1.5X40
