Mercedes A0044327301 - DRUCKLUFTBEHAELTER B

IBC-FAHRGESTELL-BUGGY 2-ACHSER NAFTA 634.300

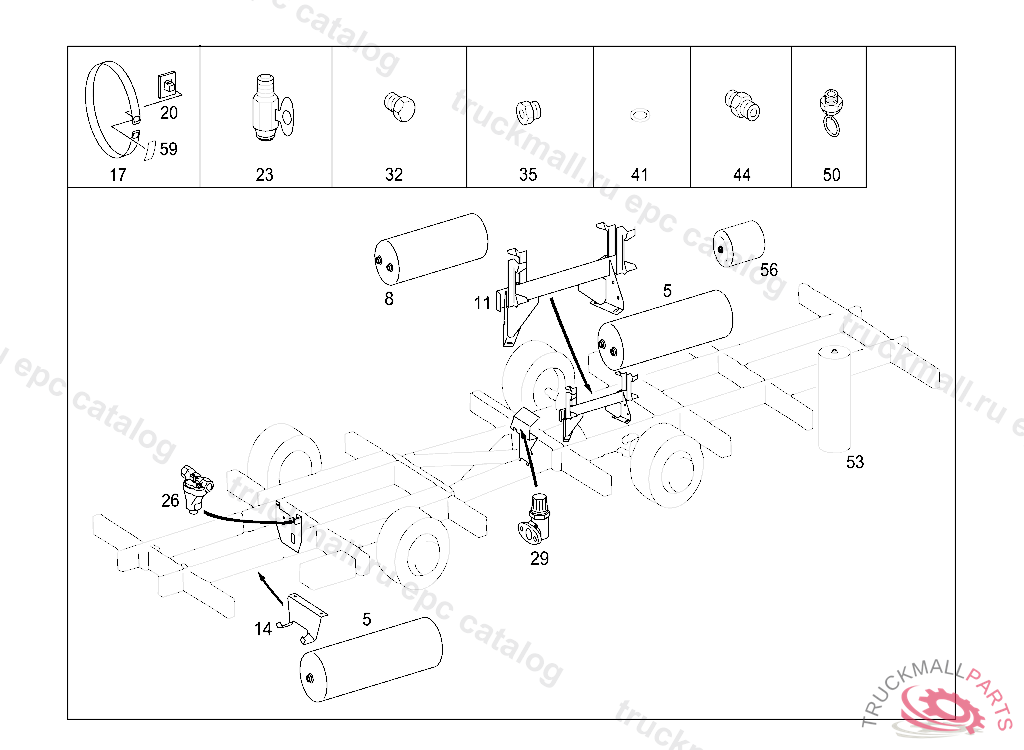

42 BRAKES - 320 AIR RESERVOIR,DRAIN VALVE,OVERFLOW VALVE IL. 1

Поз.
Артикул
Описание
5
A0044327301
RESERVOIR AIR RESERVOIR 40L 246X915MM
8
A0044327401
RESERVOIR142PSI/60L
11
A6344200568
11
A6344200168
SUPPORT
14
A6344323640
BRACKET
14
A6344326540
17
A0004320321
STRAP780LG
17
A0004320421
STRAP875LG
20
A0004320023
SHACKLE
23
A6854310506
VALVE BRAKE CIRCUIT II, AND SPRING LOAD ACCUMULATOR
23
A0004323207
VALVE AIR RESERVOIR,DRAIN VALVE
26
A0054295244
VALVE (OVERFLOW VALVE)
26
A0014296044
VALVE (OVERFLOW VALVE) WESTINGHOUSE,5 116581
29
A6294290244
VALVE (OVERFLOW VALVE)
32
A0019976835
PLUG
35
A0009971170
REDUCTION FITTING. LOCK NUT BRAKE CIRCUIT II, AND SPRING LOAD ACCUMULATOR
41
A0129971445
SEAL RING20.3X2.4
44
A0009971070
REDUCTION FITTINGM14X1.5/M12X1.5
50
A0004323007
VALVE DRAIN VALVE
53
A0004300503
RESERVOIR
56
A0044325701
RESERVOIR
59
A0069893485
ADHESIVE TAPE PAD FOR STRAP 50 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0079893385
