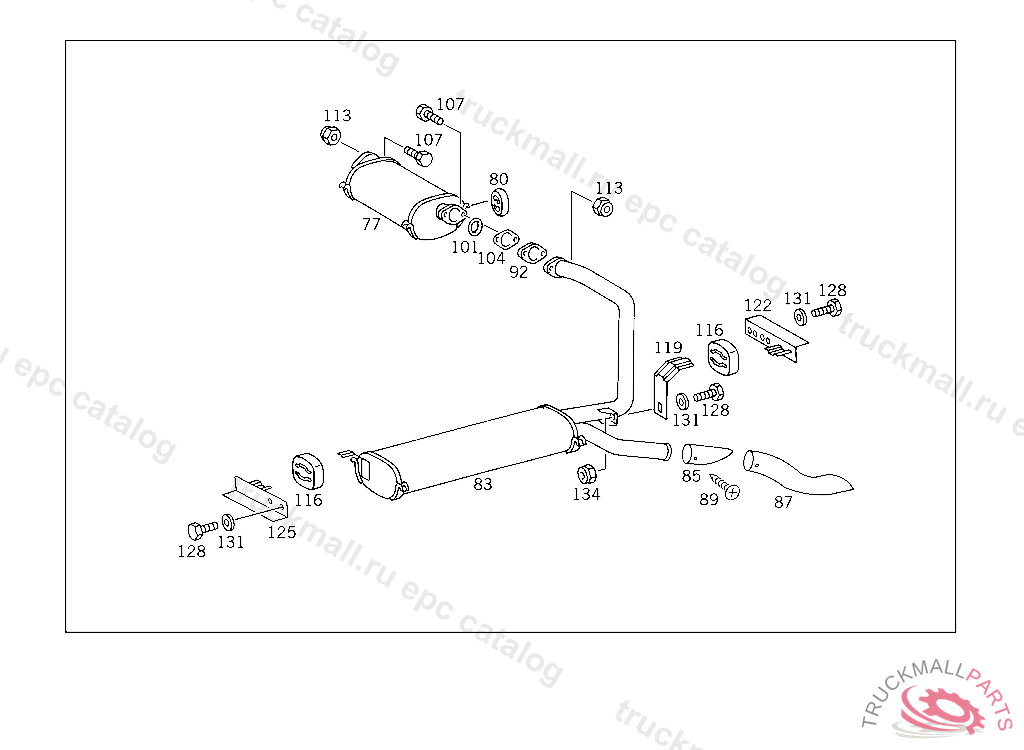

Поз.
Артикул
Описание
77
EXHAUST MUFFLER CENTRAL MUFFLER, 113041 913686
77
EXHAUST MUFFLER CENTRAL MUFFLER, 113042 913687
80
SUSPENSION RING REAR MUFFLER SUSPENSION
83
EXHAUST MUFFLER MAIN MUFFLER
83
EXHAUST MUFFLER , Replaced By: A4634904401
83
EXHAUST MUFFLER MAIN MUFFLER, 113671
85
END PIECE STANDARD VERSION
87
REAR EXHAUST PIPE
87
REAR EXHAUST PIPE , Replaced By: A4634922204
89
SHEET METAL SCREW
92
FLANGE FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE
101
SEAL RING FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE E36 AMG
101
SEAL RING , Replaced By: A2024920181
107
SCREW , Replaced By: N304017008043
107
SCREW VALVE TO BRACKET M 8X55
113
HEXAGON NUT SCREENING PLATE,5 163561
113
NUT , Replaced By: A1201420072
116
DAMPING PAD PRE-MUFFLER FIXTURE
116
DAMPING PAD PARTICLE FILTER
119
BRACKET REAR
122
BRACKET REAR
125
ANGLE FRONT
128
SCREW CLAMP TO BRACKET AND TO PIPE
131
WASHER , Replaced By: N000125008443
131
WASHER , Replaced By: N009021008213
131
WASHER BRACKET TO LEFT SIDE MEMBER
131
WASHER BRACKET TO CAB REAR PANEL
131
WASHER EXHAUST MUFFLER TO STRAP
134
HEXAGON NUT SCREENING PLATE,5 163561
134
NUT , Replaced By: A1201420072
999
PROTECTIVE PLATE LONGITUDINAL CONTROL ARM BEARING, NOT USED
