Поз.
Артикул
Описание

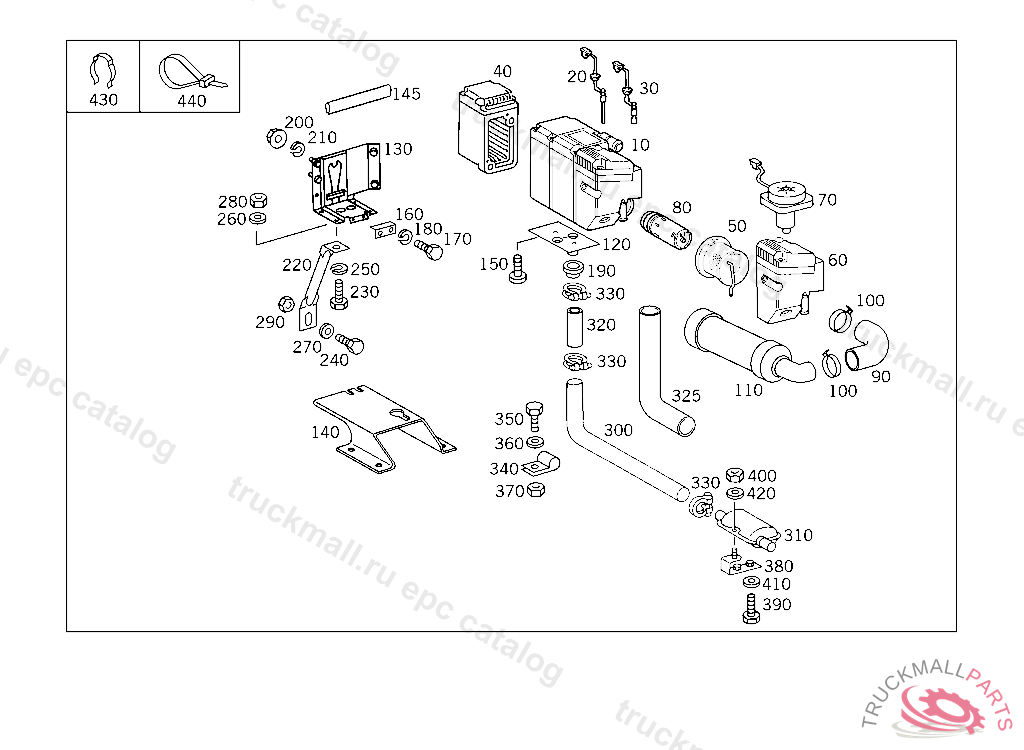

10
HEATING UNIT
10
HEATING UNIT , Replaced By: A4635000698
10
HEATER UNIT. HEATING UNIT , Replaced By: A4635000498
20
LOCK FLAME DETECTION PHOTOCELL
30
GLOW PLUG
40
HEAT EXCHANGER
50
BURNER INSET
60
HOUSING
70
BLOWER
80
RECIRCULATING PUMP
120
BRACKET ,096674 EXCEPT 096676
130
BRACKET
150
SCREW BRACKET TO COVERING, UP TO IDENT NO. K 074702 EXCEPT FOR K 062141
160
BRACKET
170
SCREW LICENSE PLATE TO BRACKET
170
SCREW , Replaced By: N304017006020
180
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
190
GASKET
200
NUT SPRING-LOADED PUSH ROD
200
NUT BALL PIVOT TO LEVER
210
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
220
STIFFENING
230
SCREW COVER PLATE TO COVER PLATE M 6 X 12
250
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
260
WASHER COMPRESSED AIR LINE TO BRACKET
260
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
280
NUT BALL PIVOT TO LEVER
280
NUT SPRING-LOADED PUSH ROD
300
FRONT EXHAUST PIPE
310
MUFFLER EXHAUST MUFFLER
330
CLAMP , Replaced By: A0049976890
380
BRACKET EXHAUST MUFFLER
390
SCREW COVER PLATE TO COVER PLATE M 6 X 12
400
NUT BALL PIVOT TO LEVER
400
NUT SPRING-LOADED PUSH ROD
410
WASHER COMPRESSED AIR LINE TO BRACKET
410
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
420
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
420
WASHER COMPRESSED AIR LINE TO BRACKET
