Mercedes A6283331005 - LU LAENGSLENKER MA

IBC-FAHRGESTELL-BUGGY 3-ACHSER NAFTA 634.301

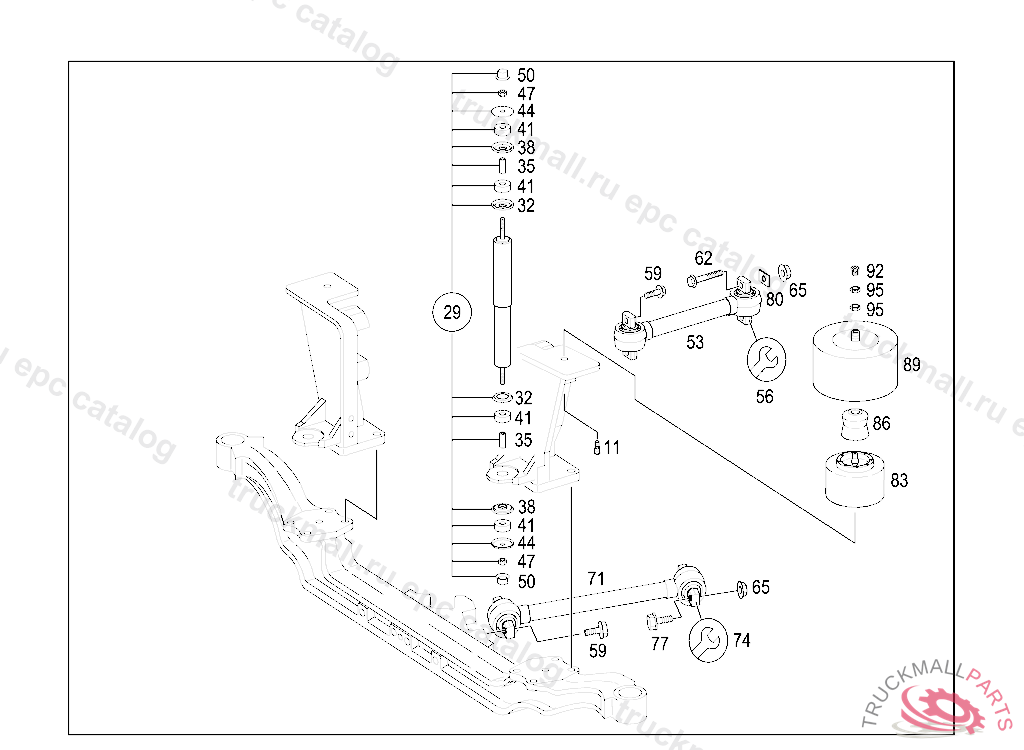

32 SPRINGS AND SUSPENSION - 565 AIR SUSPENSION AND STABILIZATION,TRAILING AXLE

Поз.
Артикул
Описание
11
A6283250075
SCREW BELLOWS ON BRACKET
29
A6273260100
SHOCK ABSORBER COMPLETE NV36X220HA
32
A0003231967
RETAINER
35
A0003235050
BUSHING TOP TO 673 323 00 00,675 323 06 00
38
A0003232067
RETAINER
41
A0003237785
RUBBER MOUNTING
44
A0003232467
RETAINER
47
A0003230372
NUT , Replaced By: N913004014005
50
A0003231038
DUST CAP
53
A6343330005
56
A0003302011
REPAIR KIT DRIVE FLANGE TO A 628 333 19 05
59
A0029903522
SCREW TOP TRAILING ARM ON AXLE BEAM M18 X 1.5 X 60 MM
62
N000000005568
HEXAGON HEAD BOLT SUPPORT TO SIDE MEMBER M18X1.5X130
65
N000000005739
NUT TRAILER COUPLING TO FRONT CROSS MEMBER M18X1.5
71
A6283331005
THRUST ARM (LONGITUDINAL CONTROL ARMS) BOTTOM, Replaced By: A6283331805
71
A6283331805
RADIUS ROD (LONGITUDINAL CONTROL ARMS) BOTTOM
74
A0003501513
JOINT LESS BALL PIVOT TO 658 350 00 06
77
N000000005396
HEXAGON HEAD BOLTM18X1.5X160
80
A0003251076
WASHER3X35X50
80
A0003251176
WASHER2X35X50
80
A0003250976
WASHER5X35X50
83
A6293200018
PISTOND200
86
A6293220044
RUBBER BUFFER
89
A6293270001
AIR SPRING BELLOWS4644N
92
A0009974734
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
95
N000000005915
NUTM24X1.5
95
N080705024002
NUT POWER CYLINDER TO BRACKET
