Mercedes A0004920087 - Puffer

CBC - FAHRGESTELL OC500 CNG GAS 634.700

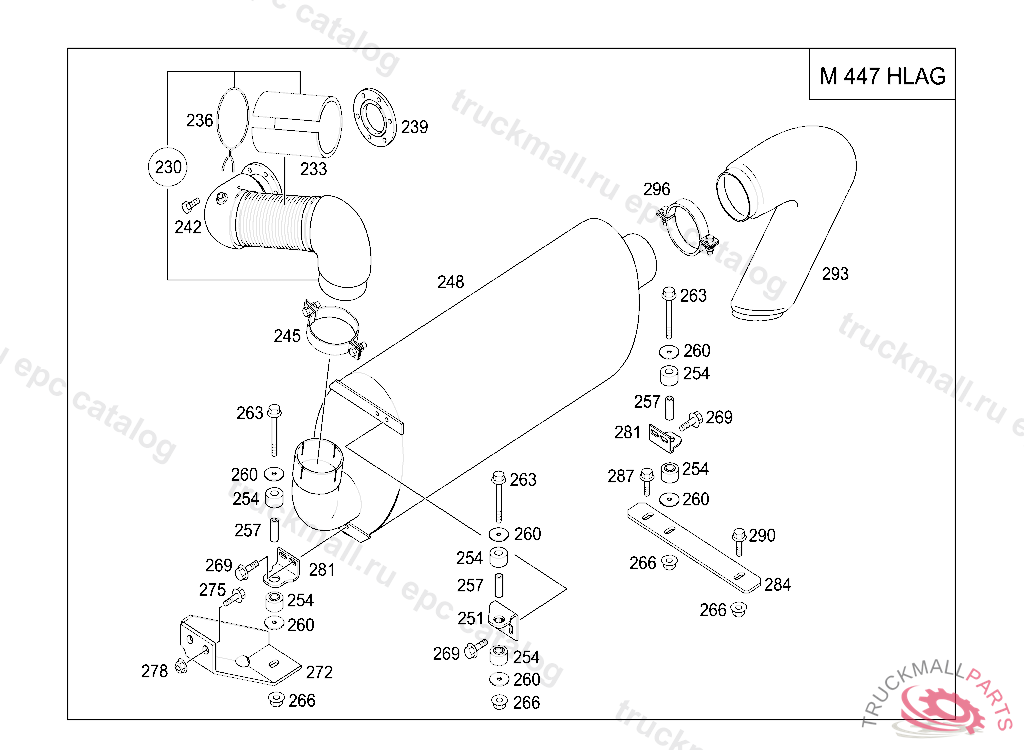

49 EXHAUST SYSTEM - 030 EXHAUST SYSTEM IL. 3

Поз.
Артикул
Описание
230
A6344900121
233
A6344910083
236
A0009881073
WIRE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
239
A6284920180
FLANGE GASKET
242
A0129900601
SCREWM10X25MM
245
A6344900541
248
A6344900114
251
A6294910215
CONSOLE
254
A0004920087
BUFFER
257
A0004910053
SPACER TUBE
260
A0069905640
WASHER50X11X3MM
263
N910105010016
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
266
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
269
N910105010006
SCREWM 10X20
272
A6344910741
275
N910105012020
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
278
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
281
A6294910115
CONSOLE
284
A6344910541
287
N910105010044
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
290
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
293
A6344900221
296
A6344900641
