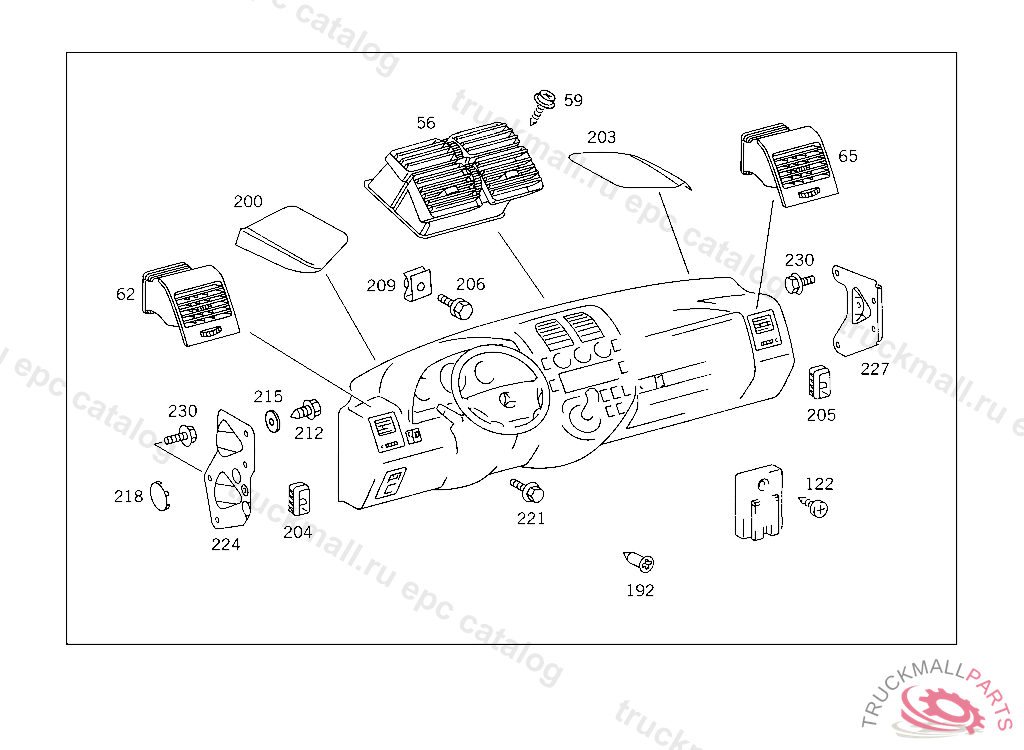

Поз.
Артикул
Описание
56
NOZZLE INSTRUMENT PANEL, IIII NO.7C45I NO.7C45III
59
SCREW
62
NOZZLE LEFT,NO.7C45I NO.7C52IIIII NO.8F63II
65
NOZZLE RIGHT,NO.7C45I NO.7C52IIIII NO.8F63II
192
SPACER RIGHT
200
SCREEN LEFT,NO.7C52I NO.8F63IIIIIII
200
SCREEN , Replaced By: A6386890466
203
SCREEN , Replaced By: A6386890566
203
SCREEN RIGHT,NO.7C52I NO.8F63IIIIIII
204
CLIP LEFT
205
CLIP RIGHT
206
COMBINATION BOLT , Replaced By: N304017006020, +001N000125006421
209
LOCK ATTACHMENT FOR HEATER
212
SCREW COVER PLATE TO COVER PLATE M 6 X 12
215
WASHER COMPRESSED AIR LINE TO BRACKET
218
COVER INSTRUMENT PANEL TO COWL,NO.7C52I NO.8F63IIIIIII
221
COMBINATION BOLT INSTRUMENT PANEL ON CENTER CONSOLE M 8X35
224
PLATE INSTRUMENT PANEL TO COWL,LEFT
227
PLATE INSTRUMENT PANEL TO COWL,RIGHT
230
SCREW CABLE HARNESS MOUNTING
999
TRAY
999
STAY BOTTOM
999
COVER
999
GUIDE
999
GUIDE
999
COVERING
