Поз.
Артикул
Описание

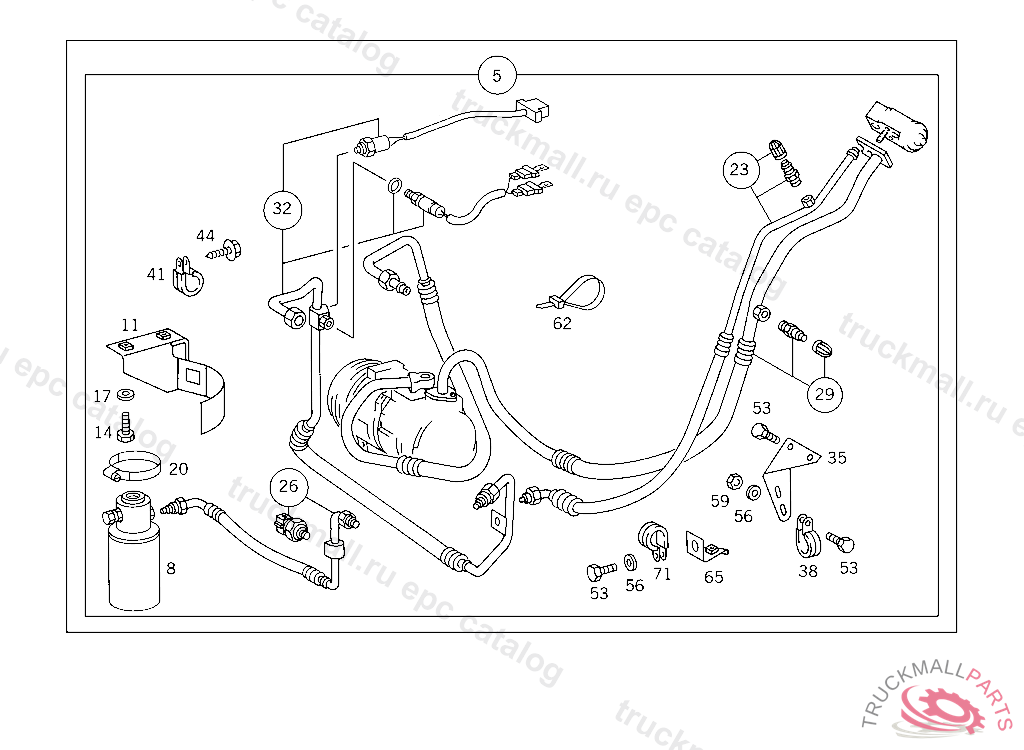

5
AIR CONDITIONER SIMPLIFIED VERSION WITHOUT RESIDUAL HEAT UTILIZATION OM601.970, CAUTION: ON VEHICLES WITH HEATER WITHOUT RECIRCULATING AIR, ONLY REDUCED COOLING CAPACITY
8
OIL TANK REFRIGERANT
11
BRACKET LIQUID TANK
14
SCREW PUMP TO BRACKET
17
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
20
CLAMP HOSE TO RETARDER 60-80X13 MM
20
CLAMP , Replaced By: N000000000673
23
PIPE LINE DRIER FOR EXPANSION VALVE
26
PIPE LINE
29
PIPE LINE FROM EXPANSION VALVE SEPARATION POINT,016686
32
PIPE LINE REFRIGERANT LINE TO CONDENSER,146177
35
BRACKET BRACKET TO SUPPORT
38
CLAMP , Replaced By: N000000001045
41
CLAMP LINE MOUNTING
44
SHEET METAL SCREW
53
SCREW PUMP TO BRACKET
56
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
59
NUT SPRING-LOADED PUSH ROD
62
LOOM TIE LINE MOUNTING 280 MM
65
BRACKET PIPE LINE TO ENGINE
71
CLAMP LINE MOUNTING
999
RADIATOR
999
BLOWER COMPLETE
