Главная
›
Mercedes
›
VAN
›
110 D
›
638.078
›
31 FRAME
›

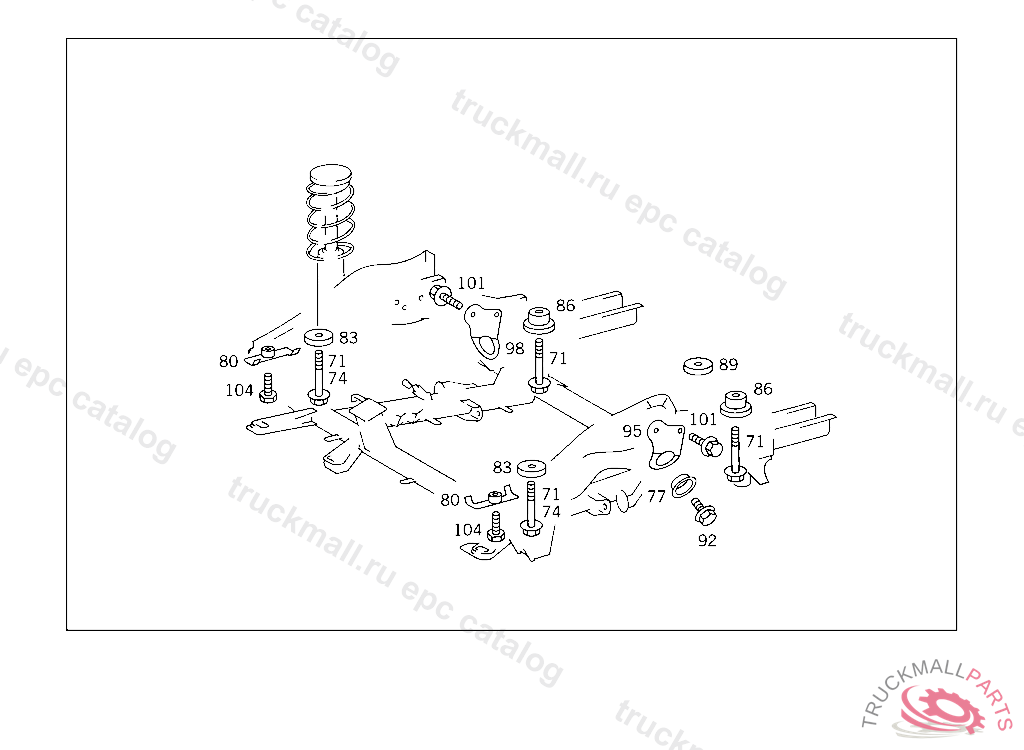

150 FRONT FRAME AREA IL. 3
Mercedes A6383170036 - УПОР
110 D 638.078
31 FRAME - 150 FRONT FRAME AREA IL. 3
Поз.
Артикул
Описание
71
N910105014014
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 140
74
N910105014004
SCREW SUPPORT TO FRAME M 14X1.5X160
77
A6383170035
BUFFER PLATE
80
A6383101609
BRACKET
83
A6383170036
STOP FRONT
86
A6383170136
STOP REAR
92
N910105014007
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
95
A6383120266
SHACKLE LEFT
98
A6383120366
SHACKLE RIGHT
101
N910105012003
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
104
N308676014008
SCREW MOUNTING TO CONSOLE M 14X35
104
N000961014050
SCREW , Replaced By: N308676014020
999
A6383101610
AUXILIARY FRAME
999
A6383101710
AUXILIARY FRAME
999
A6383123360
REINFORCEMENT FRONT
