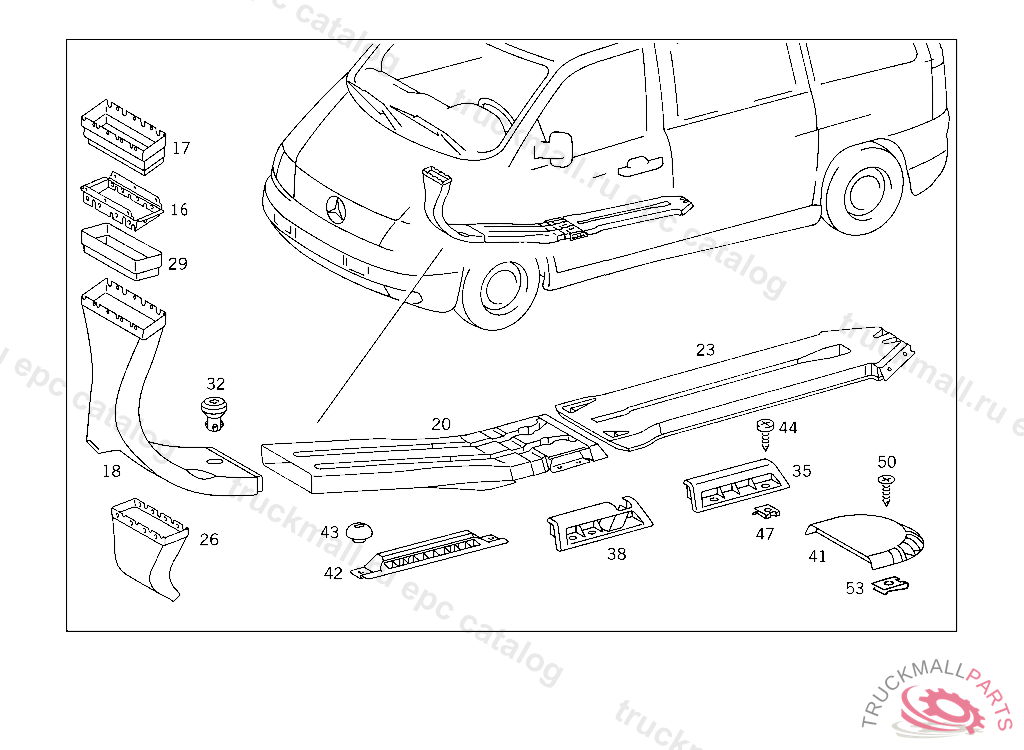

110 D - 638.078 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
16
CONNECTOR AIR DUCT
17
DUCT ,103746, Replaced By: A6388313145, +001A6388313245
17
DUCT FRONT,103747
18
DUCT FRONT,103747
20
DUCT CENTRAL
20
DUCT CENTRAL
26
BAFFLE EXHAUST
29
COVERING
32
CLAMPING ELEMENT FLOOR BELOW REAR SEAT
35
BAFFLE HEATING,NO.7C65I NO.8F88III I
42
BAFFLE HEATING
43
FASTENER BUTTON ,NO.7C65II NO.8F30IIII
44
SHEET METAL SCREW FRONT
47
LOCK FRONT
