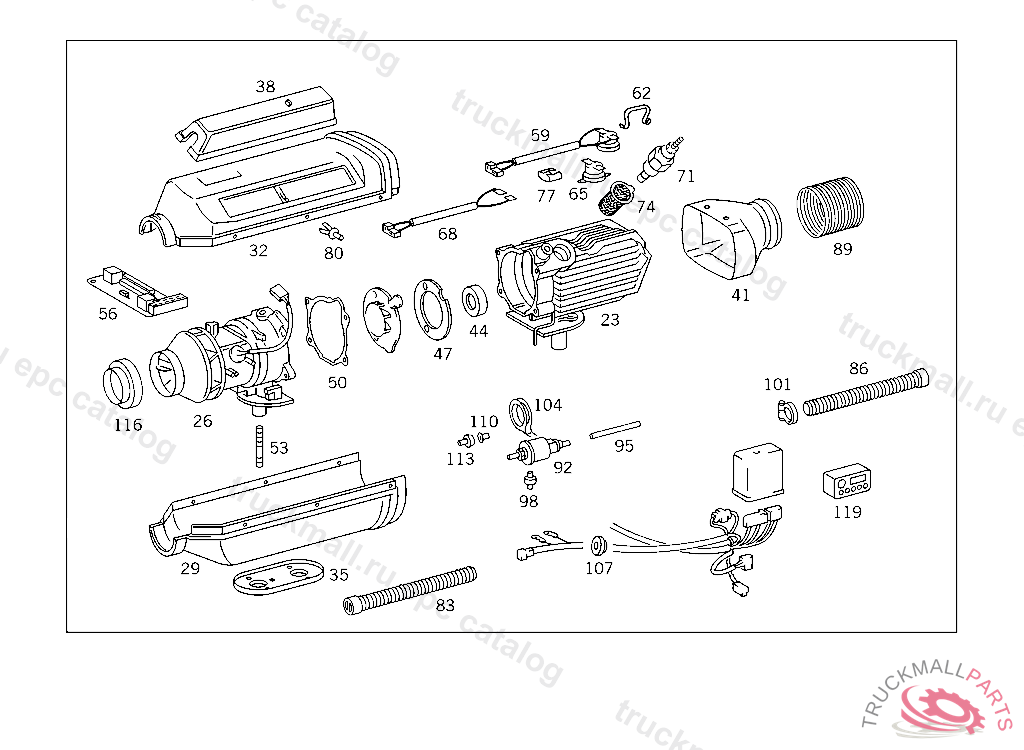

Поз.
Артикул
Описание
23
PART NAME MISSING. HEAT EXCHANGER
26
BLOWER ,P 753730
29
COVERING BOTTOM, PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
32
COVERING TOP
35
SEAL FLANGE, PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
38
CAP ,P 753730
41
SCOOP FUSE, P 753731 R 000001
44
SEAL
47
SEAL COVER
50
SEAL HEAT EXCHANGER, PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
53
STUD BLOWER, PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
56
PRINTED CIRCUIT PLATE ,P 753730
59
FUSE
62
SPRING HEAT EXCHANGER TEMPERATURE SENSOR,P 753730
65
SWITCH , Replaced By: A0058202310
65
SWITCH OVERHEATING,P 753730
68
ELECTRIC CABLE SWITCH,P 753730
71
HEATER PLUG
74
FILTER , PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
77
LOCK PLATE CONSOLE TO REAR PANELLING,TOP
77
SPRING , Replaced By: N912003005000
77
DUO CLIP , Replaced By: N912010005001
80
RIVET
83
HOSE
83
INTAKE PIPE , Replaced By: A0008322894
86
PIPE LINE , P 753731 R 000001
89
HOSE
92
PUMP
95
PIPE LINE , P 753731 R 000001
98
BUFFER
101
LOOM TIE , Replaced By: A0008300068
104
CLAMPTO 638 835 12 01,13 01
107
GROMMET
110
STRAINER
113
FITTING
116
RING , P 753731 R 000001
119
CLOCK HOT AIR AUXILIARY HEATER,P 753730
