Mercedes A6384200685 - ТЯГА

V 200 638.214

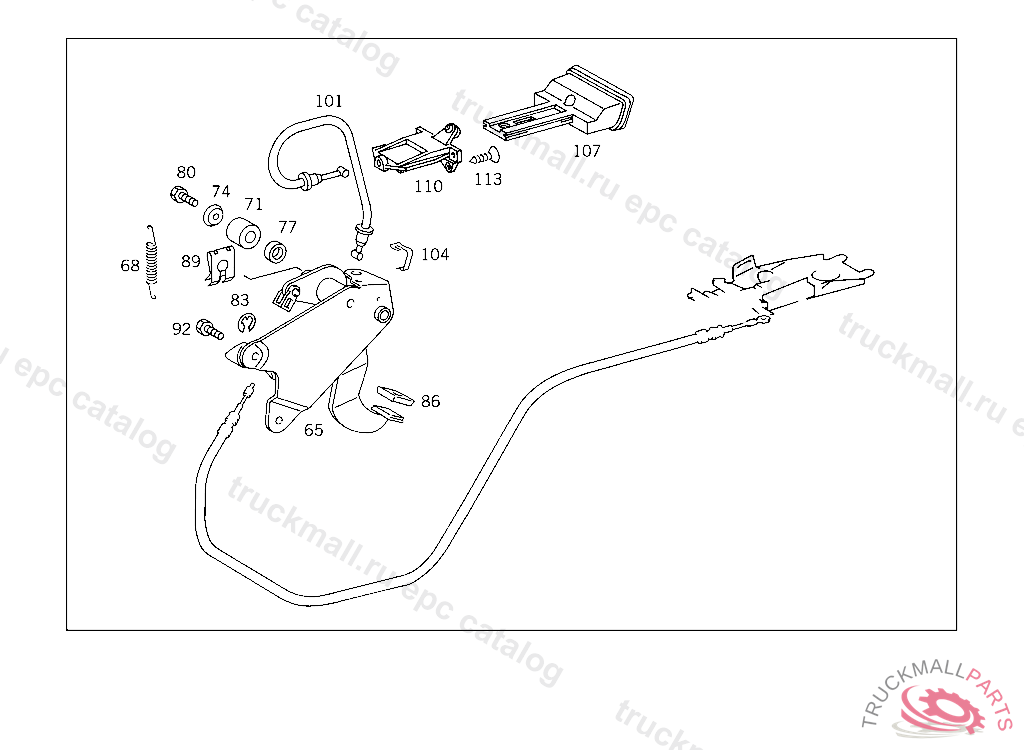

42 BRAKES - 450 PARKING BRAKE IL. 2

Поз.
Артикул
Описание
65
A6384200084
PARKING BRAKE
68
A1249930510
SPRING , Replaced By: A1249932810
71
A6384270086
DAMPING RING
74
A1244270276
WASHER
77
A6384270051
SPACER RING
80
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
83
N006799006003
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
86
A1244270382
PAD PEDAL
89
N912007016001
CLIP RESERVOIR TO CAB FRONT PANEL
92
N304017008032
SCREW OIL PAN TO CYLINDER CRANKCASE M8X16,977281
101
A6384200685
BRAKE CABLE
104
A1249881278
CLIP
107
A6384270120
HANDLE ,NO.7C52I NO.8F63IIIII I
110
A1244200777
GUIDE
113
N914151005008
SCREW FOOT OPERATED PARKING BRAKE RELEASE HANDLE TO INSTRUMENT PANEL
