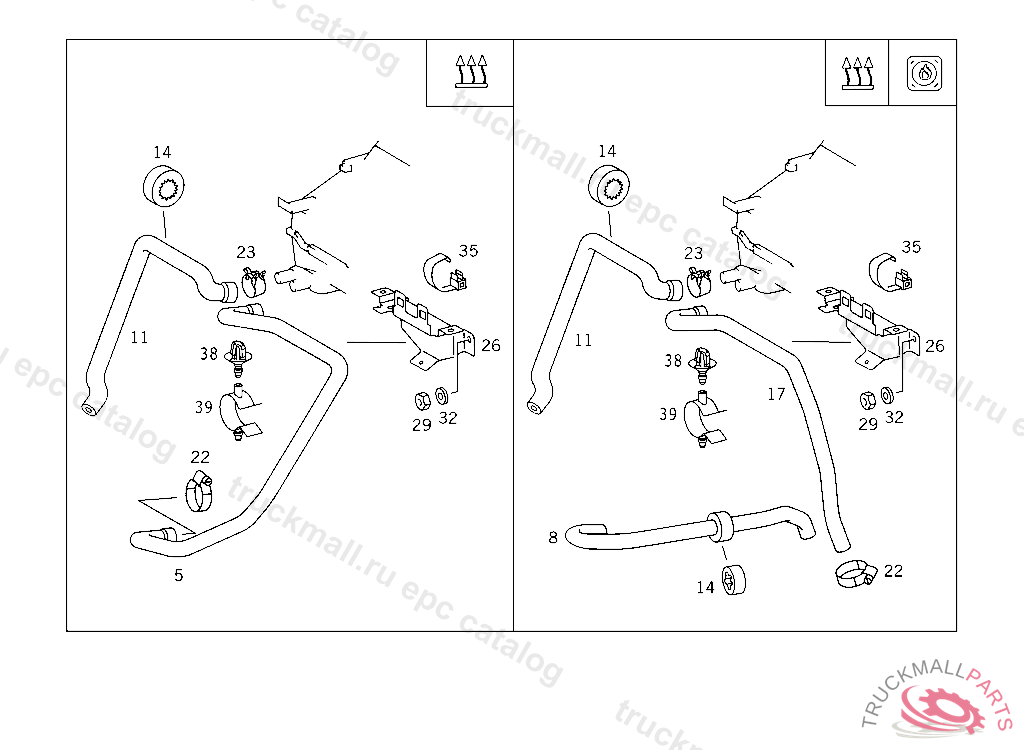

Mercedes A6388300696 - Шланг
V 200 638.214
83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 1
Поз.
Артикул
Описание
5
A6388321423
HOSE HEATING FEED
8
A6388300596
HOSE HEATING FEED
11
A6388300696
HOSE RETURN LINE TO WATER PUMP
14
A1164661482
RUBBER RING
17
A6388323023
HOSE FROM AUXILIARY HEATER TO HEAT EXCHANGER,094187
22
N916026020001
CLAMP , Replaced By: N000000000667
22
A6389970190
LOOM TIE HOSE FASTENING
23
N000000000668
CLAMP25-40X13 MM
26
A6388300114
BRACKET FEED HOSE TO FIRE WALL
29
N304032005000
NUT ,230416
32
N000125005315
WASHER FUSE TO FUSE BOX
35
A6388320068
BRACKET FEED LINE
38
A6389880878
CLIP HOSE FASTENING
38
A6389950065
CLAMP , Replaced By: A6389880878, +001A0009953765
39
A0009953765
CLAMP , Replaced By: A0009956265
999
A6388320723
HOSE RETURN LINE TO WATER PUMP
999
A6388322323
HOSE HEATING FEED
