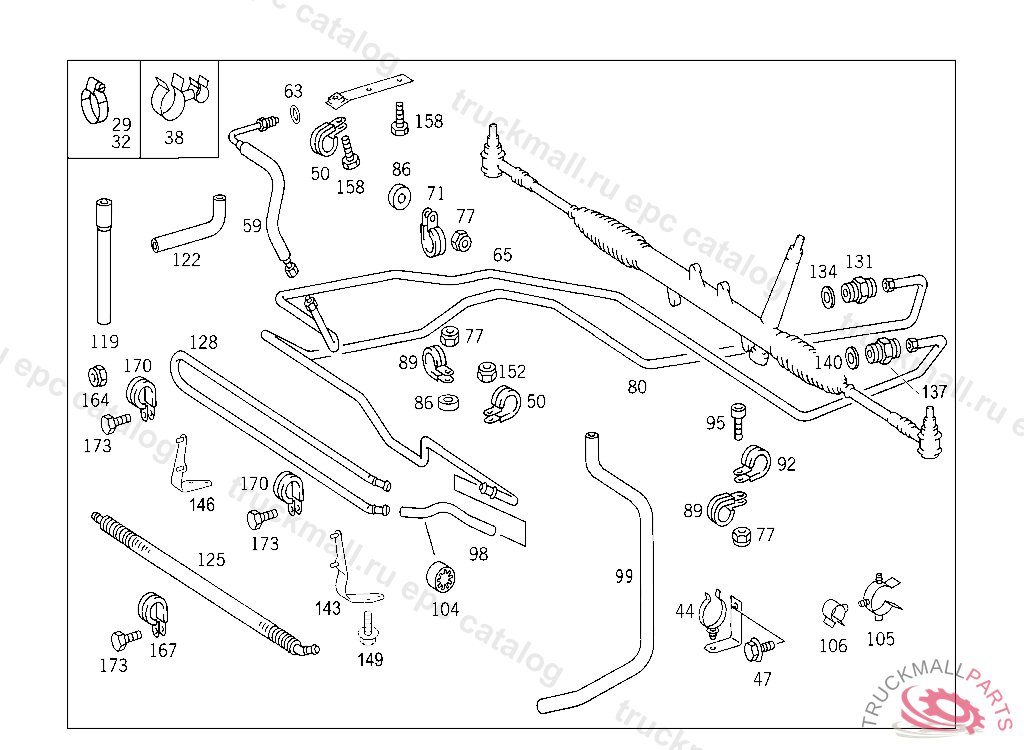

Поз.
Артикул
Описание
29
HOSE CLAMP LINE MOUNTING
29
HOSE CLAMP FUEL LINE TO SENDER UNIT
29
CLAMP , Replaced By: A0059972790
29
CLAMP FROM COOLING PIPE TO PUMP
44
BRACKET VALVE TO BRACKET
47
SCREW AIR COMPRESSOR LINE
50
CLAMP PIPE ON FAN SHROUD
50
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
59
HOSE (HIGH PRESSURE HOSE),011399
59
63
SEAL RING
65
LINE HIGH PRESSURE LINE TO STEERING,011399
65
LINE HIGH PRESSURE LINE TO STEERING,011400
71
CLAMP , Replaced By: N000000001045
77
NUT PUMP TO BRACKET
80
LINE LOW PRESSURE LINE TO STEERING
80
86
SPACER TUBE CONTROL UNIT TO CAB, TO BE ADAPTED DURING ASSEMBLY
89
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
92
CLAMP , Replaced By: N000000001045
95
SCREW , Replaced By: A1249900520
98
98
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
99
HOSE RETURN LINE
99
HOSE , Replaced By: A6384661481
104
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
105
CLAMP WIRE CABLE TO COOLING WATER HOSE, N 000001 P 033406
106
CLAMP HOSE TO HOSE 20 MM
119
HOSE RETURN LINE,011399
122
HOSE RETURN LINE,011400
125
125
131
FITTING HOSE TO STEERING
134
SEALING RING. SEAL RING ENGINE BREATHING
137
FITTING DELIVERY LINE TO STEERING
140
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
143
BRACKET LEFT, DISCONTINUED,PART IS NO LONGER REQUIRED SEE GROUP:31
146
BRACKET RIGHT, DISCONTINUED,PART IS NO LONGER REQUIRED SEE GROUP:31
149
SCREW APPARATUS CASE TO BRACKET
152
NUT PUMP TO BRACKET
164
NUT PUMP TO BRACKET
167
CLAMP HOSE TO FLANGE AND TO VALVE
167
CLAMP CABLE MOUNTING 26/15
173
SCREW PUMP TO BRACKET
999
HOSE
999
999
HOSE
