Главная
›
Mercedes
›
VAN
›
V 200
›
638.214
›

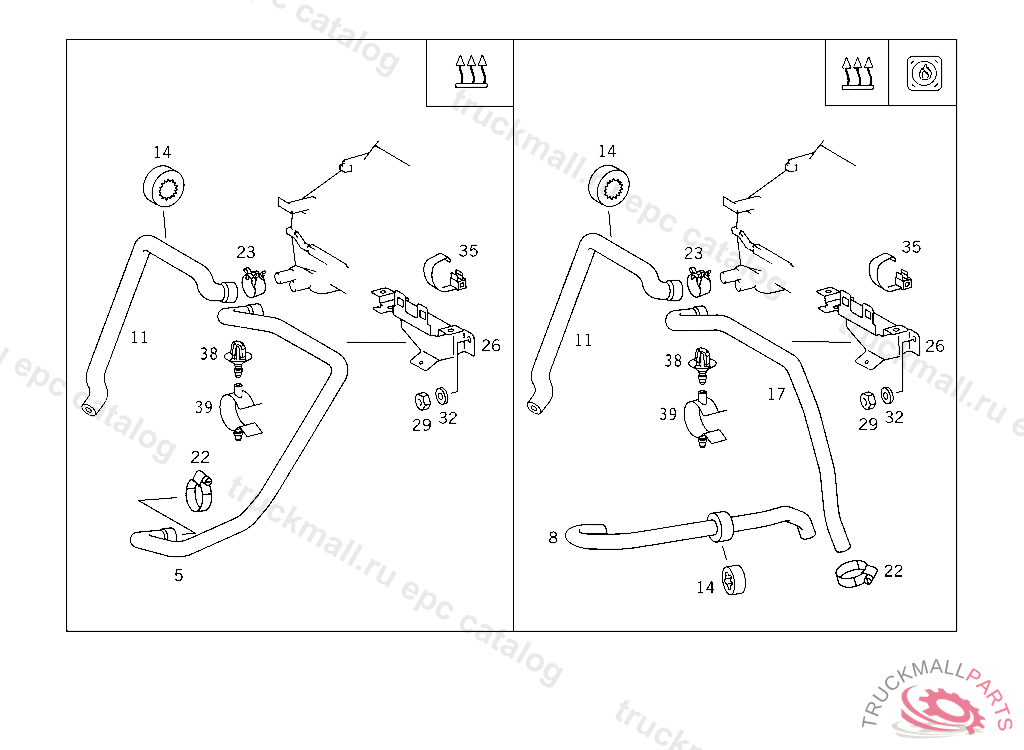

83 HEATING AND VENTILATION
›
420 HEATING WATER LINE IL. 1
Mercedes N000125005315 -
V 200 638.214
83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 1
Поз.
Артикул
Описание
5
A6388321423
HOSE HEATING FEED
8
A6388300596
HOSE HEATING FEED
11
A6388300696
HOSE RETURN LINE TO WATER PUMP
14
A1164661482
RUBBER RING
17
A6388323023
HOSE FROM AUXILIARY HEATER TO HEAT EXCHANGER,094187
22
N916026020001
CLAMP , Replaced By: N000000000667
22
A6389970190
LOOM TIE HOSE FASTENING
23
N000000000668
CLAMP25-40X13 MM
26
A6388300114
BRACKET FEED HOSE TO FIRE WALL
29
N304032005000
NUT ,230416
32
N000125005315
WASHER FUSE TO FUSE BOX
35
A6388320068
BRACKET FEED LINE
38
A6389950065
CLAMP , Replaced By: A6389880878, +001A0009953765
38
A6389880878
CLIP HOSE FASTENING
39
A0009953765
CLAMP , Replaced By: A0009956265
999
A6388320723
HOSE RETURN LINE TO WATER PUMP
999
A6388322323
HOSE HEATING FEED
