Главная
›
Mercedes
›
VAN
›
V 200
›
638.214
›
27 AUTOMATIC TRANSMISSION
›

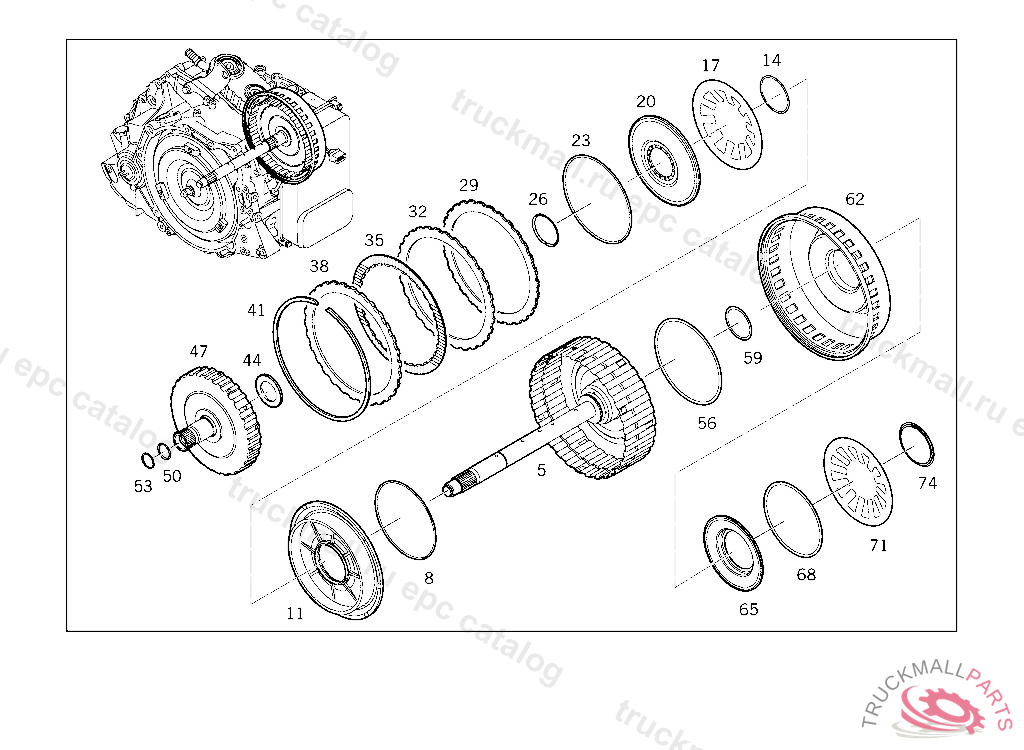

040 INTERIOR TRANSMISSION PARTS IL. 1
Mercedes A0002571947 - Фрикц. диск наружный
V 200 638.214
27 AUTOMATIC TRANSMISSION - 040 INTERIOR TRANSMISSION PARTS IL. 1
Поз.
Артикул
Описание
5
A0002570122
DRIVEN SHAFT
8
A0249977648
SEAL RING
11
A0002572241
11
A0002572041
14
A0249977748
SEAL RING
17
A0019930826
DISC SPRING
20
A0002576476
WASHER
23
A0249977648
SEAL RING
26
A0002570219
RING
29
A0002572047
OUTER DISC
29
A0002570747
OUTER DISC , Replaced By: A0002572047
32
A0002570847
OUTER DISC , Replaced By: A0002571947
32
A0002571947
OUTER DISC2.10 MM
35
A0002570947
OUTER DISC
38
A0002571047
OUTER DISC4.80 MM
38
A0002571147
OUTER DISC3.90 MM
38
A0002571247
41
A0029946835
SNAP RING
44
A0199813910
NEEDLE BEARING
47
A0002570125
EXTERNAL DISC SUPPORT
50
A0029946935
SNAP RING
53
A0002570319
RING
56
A0249977948
SEAL RING
59
A0249978048
SEAL RING
62
A0002571941
PISTON
65
A0002576576
WASHER
68
A0249978148
SEAL RING
71
A0019930926
DISC SPRING
74
A0002570419
RING
