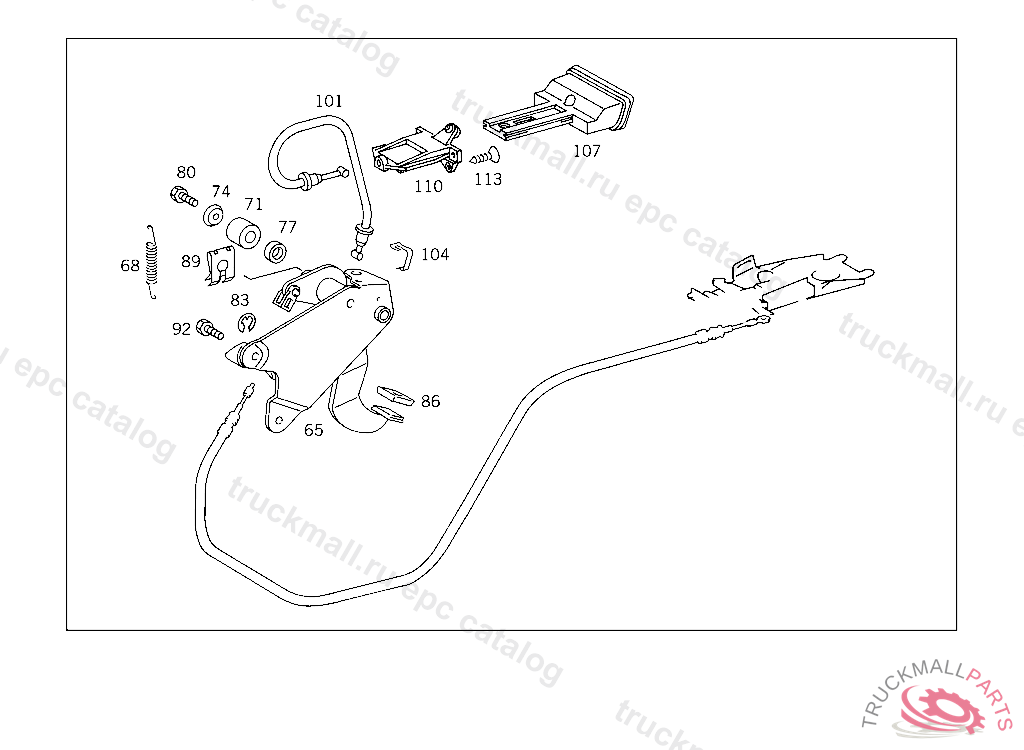

V 200 - 638.214 - 42 BRAKES
Поз.
Артикул
Описание
65
PARKING BRAKE
68
SPRING , Replaced By: A1249932810
71
DAMPING RING
74
WASHER
77
SPACER RING
80
SCREW COVER PLATE TO COVER PLATE M 6 X 12
83
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
86
PAD PEDAL
89
CLIP RESERVOIR TO CAB FRONT PANEL
92
SCREW OIL PAN TO CYLINDER CRANKCASE M8X16,977281
101
BRAKE CABLE
104
CLIP
107
HANDLE ,NO.7C52I NO.8F63IIIII I
110
GUIDE
113
SCREW FOOT OPERATED PARKING BRAKE RELEASE HANDLE TO INSTRUMENT PANEL
