Mercedes A6386310732 - Кронштейн

V 230 638.234

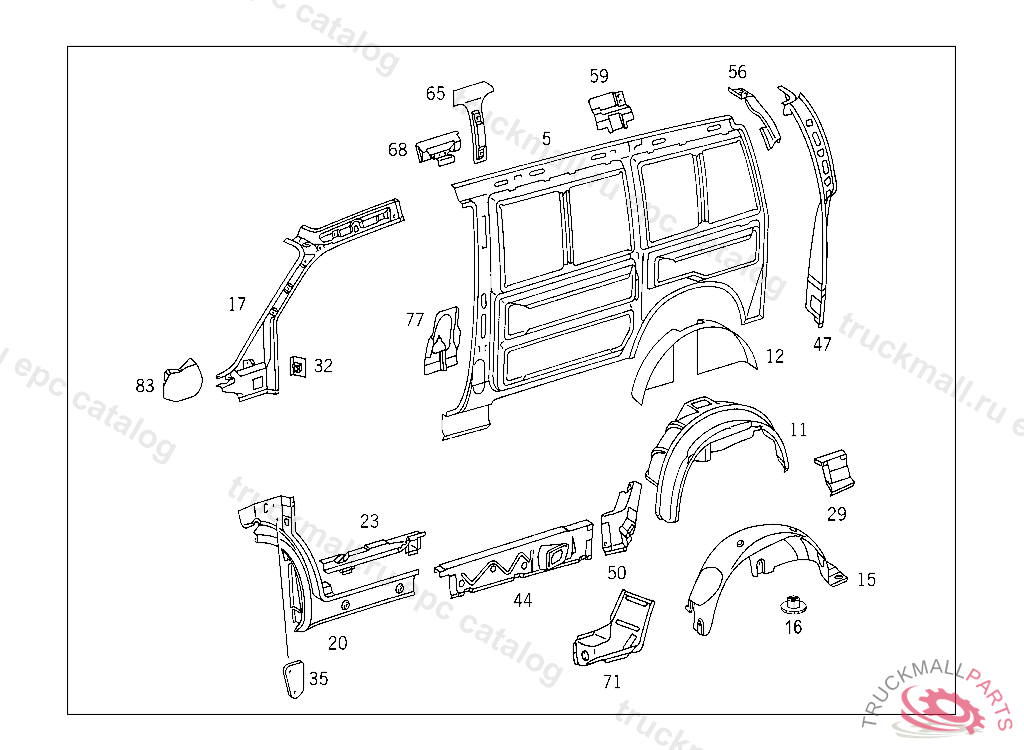

63 SIDE PANELS - 030 SIDE PANEL,LEFT IL. 1

Поз.
Артикул
Описание
5
A6386361109
SIDE PANEL WITHOUT LOAD COMPARTMENT SLIDING DOOR
11
A6386600450
WHEELHOUSE WITHOUT LOAD COMPARTMENT SLIDING DOOR
12
A6389891471
INSULATION600X200X1,5 MM, TO BE ADAPTED DURING ASSEMBLY
15
A6386980630
16
A0019889581
FASTENER BUTTON INSULATION TO PARTITION PANEL,RIGHT
17
A6386310612
PILLAR PART A-PILLAR,INSIDE LEFT
20
A6386300013
PILLAR BOTTOM LEFT
23
A6386300205
GIRDER PART LEFT BOTTOM
29
A6386310732
CONNECTION LEFT
29
A6386310032
CONNECTION , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 071249, Replaced By: A6386310732
32
A6386301416
REINFORCEMENT LEFT
35
A6386300145
PLATE
44
A6386300605
GIRDER PART
47
A6386300110
PILLAR D-PILLAR,INSIDE LEFT
50
A6386300289
TAKE-UP DEVICE C-PILLAR
56
A6387400106
REINFORCEMENT HINGE
59
A6386370212
ANGLE HINGE
65
A6386310216
REINFORCEMENT TOP LEFT
68
A6386320524
BRACKET
71
A6386312516
REINFORCEMENT C-PILLAR
77
A6386300916
REINFORCEMENT BELT REEL
83
A6386320009
END PIECE
