V 230 638.234

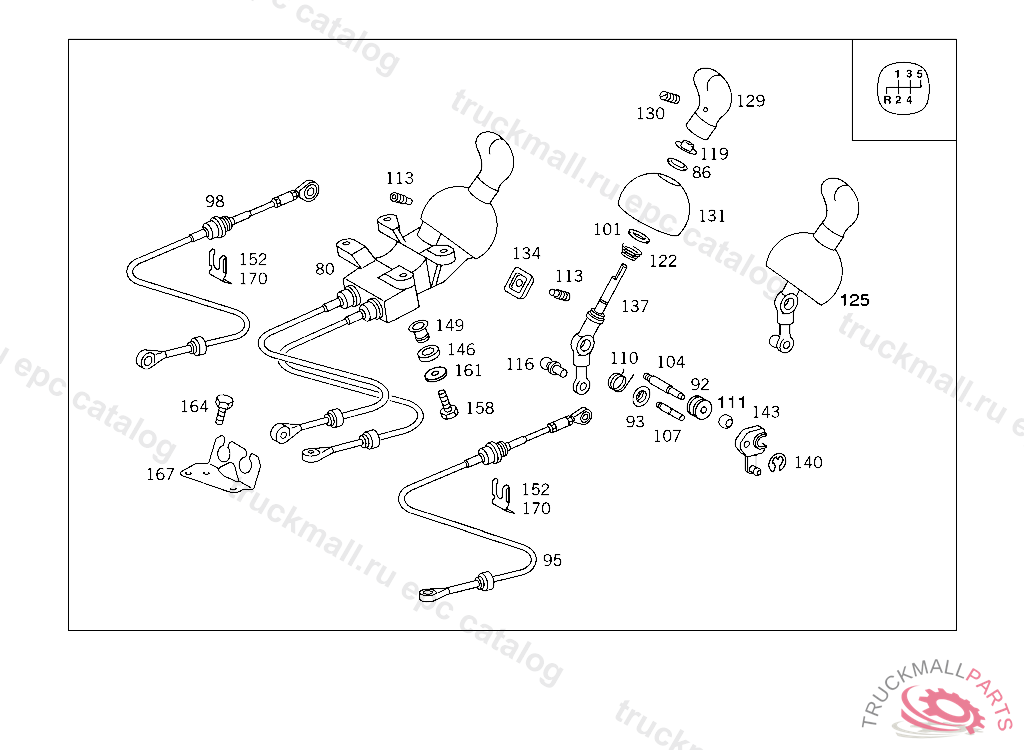

26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS IL. 3

Поз.
Артикул
Описание
80
A6382600509
SHIFT LEVER MANUAL TRANSMISSION
80
A6382600809
80
A6382600709
80
A6382600609
86
A0002612476
WASHER
92
A0002651349
SLIDE
93
A0002611150
BUSHING
95
A0002680091
CABLE SELECTING PUSH PULL CABLE
98
A0002680191
CABLE
101
A0002612676
WASHER
104
A0002646318
SHAFT
107
A0002610474
PIN
110
A0002620393
SPRING
111
A0002690244
BALL
113
A0002610574
PIN
116
A0002610006
BALL HEAD
119
A0002610072
NUT
122
A0002620493
SPRING
125
A0002642924
SHIFT LEVER WITH HANDLE
129
A0002670010
HANDLE
130
A0009900207
STUD
131
A0002625829
COVERING
134
A0002630340
FOLLOWER
137
A0002643024
SHIFT LEVER
140
N006799006005
LOCK PLATE , F 125157 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM F 125158 WITH CODE 805
143
A0002620032
LEVER
146
A0002640084
SHIM
149
A0002610950
BUSHING
152
A6382620039
RETAINING RING OPERATING ROD TO BRACKET
158
N910106008007
SCREW , 018801
161
N009021008107
WASHER HEAT SHIELD TO BRACKET
164
N304017008021
SCREW PIPE CLAMP
167
A6382610140
BRACKET
170
A6382620039
RETAINING RING OPERATING ROD TO BRACKET
