Mercedes A6380900151 - Фильтр воздушный Mercedes-Benz V 230/V 230TD 96->*

V 280 638.244

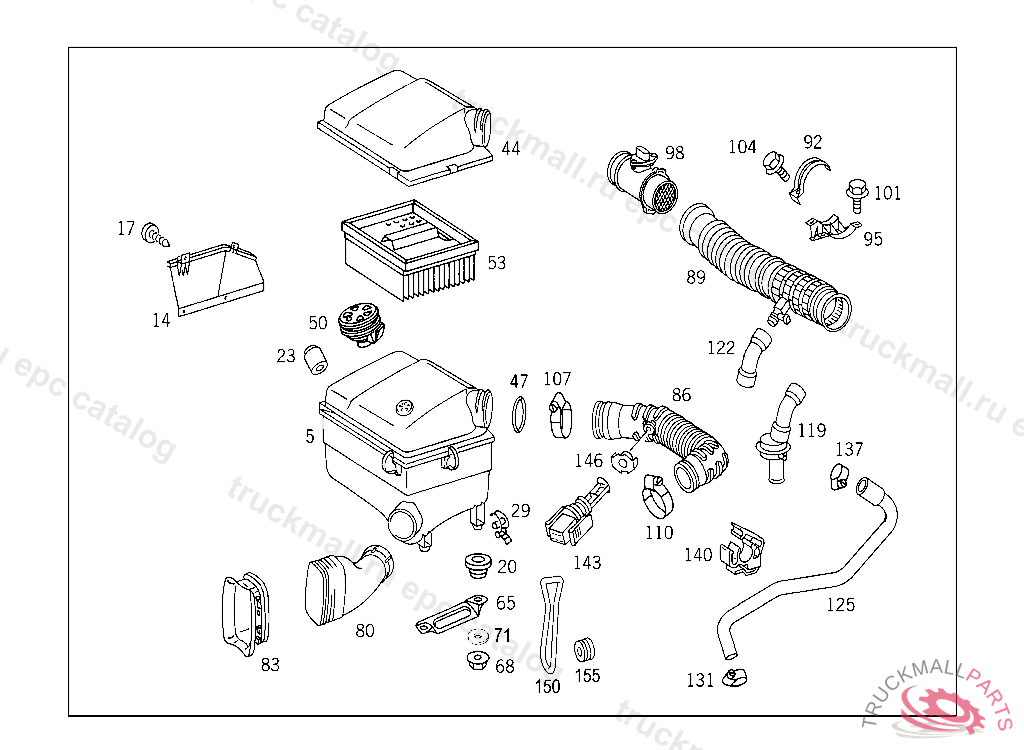

52 SHEET METAL / AIR INTAKE - 160 AIR INTAKE AND AIR CLEANER IL. 1

Поз.
Артикул
Описание
5
A6380901601
5
A6380901501
20
A0000940785
RUBBER BUFFER
23
A0000940885
RUBBER BUFFER
29
A0000943355
FASTENER
44
A0010948606
44
A0010948706
47
A0209971848
SEAL RING
50
A0000944768
VACUUM BOX (MAINTENANCE INDICATOR)
53
A6380900151
FILTER ELEMENT
65
A6385280740
68
N910112006002
HEXAGON NUT. NUT LINE TO SIDE MEMBER
83
A6380940611
89
A6380940682
89
A6380941082
92
A6380941227
95
A6380941327
98
A0000941348
101
N910105006002
HEXAGON HEAD BOLT
104
N910105005001
SCREW. HEXAGON HEAD BOLT SENDER UNIT TO BRACKET M5X25,V 214287
107
A0069976090
CLAMP W DRIVE A WASHER. CLAMP COVERING TO CAB
110
A0069976090
CLAMP W DRIVE A WASHER. CLAMP COVERING TO CAB
119
A6380100091
122
A6380180082
125
A6385282282
125
A6385282782
131
A0059970190
HOSE CLAMP LINE MOUNTING
131
A1409950036
CLAMP , Replaced By: A0059970190
137
A6389970190
LOOM TIE HOSE FASTENING
137
N916026016001
CLAMP , Replaced By: A0059970190
140
A6389950020
150
A6049970045
SEAL RING , ONLY USED WITH AIR POLLUTION CONTROL
155
A6380940627
BRACKET AT MUFFLER FILTER
