Mercedes N000125010532 - Диск

V 280 638.244

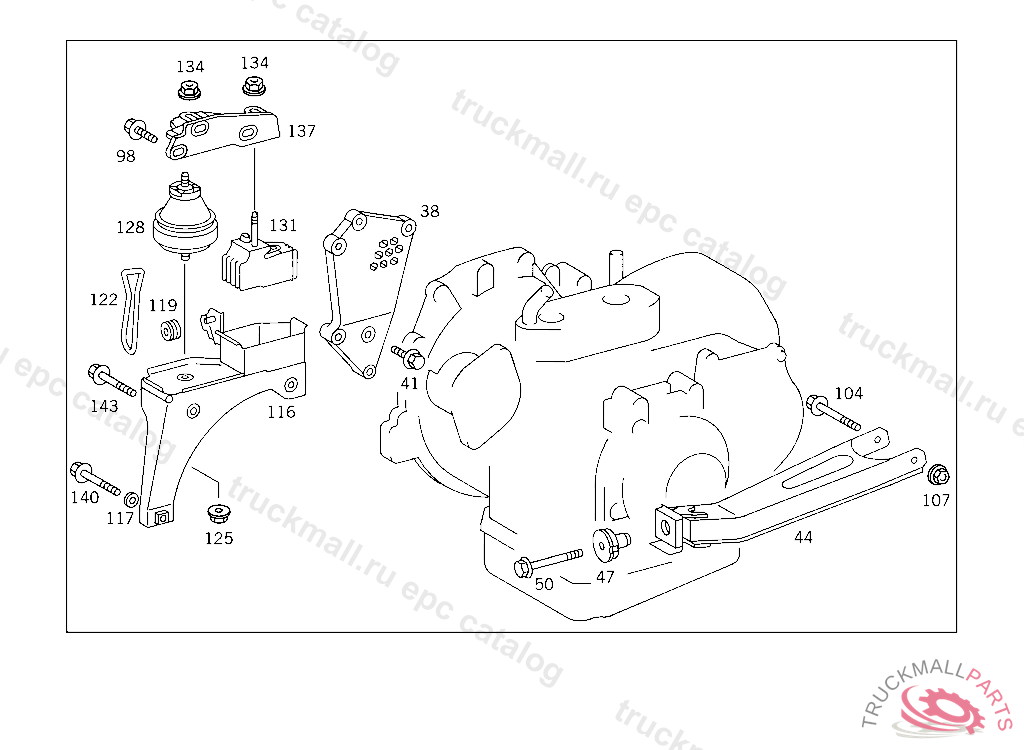

24 ENGINE SUSPENSION - 060 ENGINE SUSPENSION IL. 2

Поз.
Артикул
Описание
38
A6382420135
41
N910143010000
SCREW PLATE TO FRAME M 10X45
44
A6382420309
44
A6382420009
47
A6382420253
50
N910105012017
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
98
A0069905504
104
N910105012004
SCREW CONSOLE TO SUPPORT M 12X120
107
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
116
A6382401406
116
A6382401606
117
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
119
A6380940627
BRACKET AT MUFFLER FILTER
122
A6049970045
SEAL RING , ONLY USED WITH AIR POLLUTION CONTROL
125
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
128
A6382420013
131
A6382420113
134
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
134
A0019904750
137
A6382420902
140
N910105010044
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
143
N910105010027
HEXAGON HEAD BOLT BRACKET MOUNTING M10X100
