Поз.
Артикул
Описание

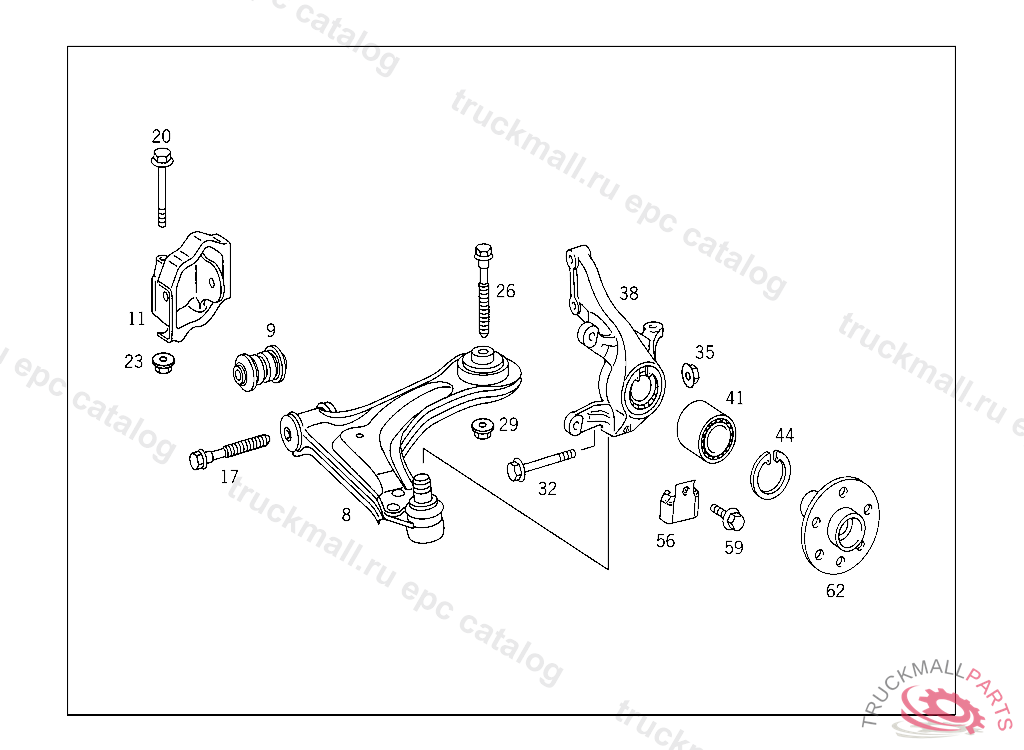

8
TRIANGULAR CONTROL ARM LEFT
8
TRIANGULAR CONTROL ARM RIGHT
8
8
9
BEARING
11
11
17
SCREW CONTROL ARM TO FRAME
20
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
23
NUT BRACKET TO SIDE MEMBER M12X1.5
26
SCREW CONTROL ARM TO FRAME,REAR
29
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
32
SCREW LOWER CONTROL ARM TO STEERING KNUCKLE
35
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
38
STEERING KNUCKLE LEFT
38
STEERING KNUCKLE RIGHT
41
ANGULAR CONTACT BEARING
44
LOCK
56
SCREENING PLATE STEERING KNUCKLE
59
SCREW COVER PLATE TO COVER PLATE M 6 X 12
62
WHEEL HUB STEERING KNUCKLE
