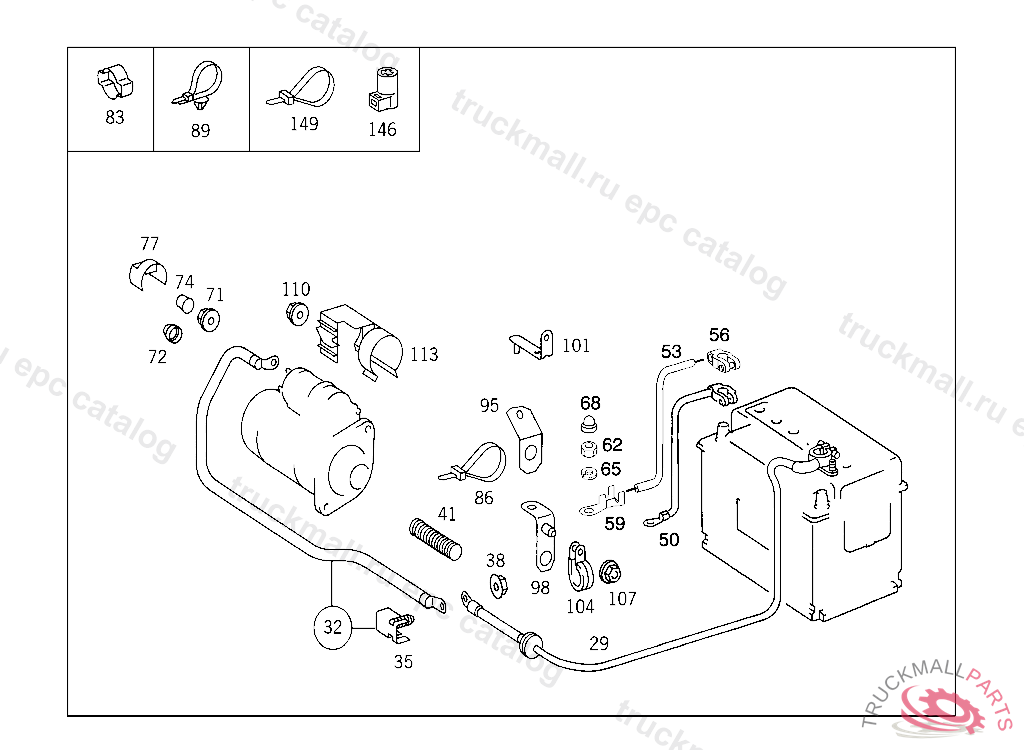

Поз.
Артикул
Описание
29
POSITIVE CABLE FROM BATTERY POS. POLE TO SEPARATION POINT, 116184
29
29
POSITIVE CABLE FROM BATTERY POS. POLE TO SEPARATION POINT, 116185
32
POSITIVE CABLE FROM SEPARATION POINT TO STARTING MOTOR
35
BRACKET STARTING CABLE
38
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
41
INSULATING HOSE FLEXIBLE, FOR CABLE HARNESS DIA.: 29.0 MM, ORDER BY THE METER
41
INSULATING HOSE , Replaced By: A0035461330
41
INSULATING HOSE , ORDER BY THE METER
50
NEG. CABLE
50
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND 310 MM
53
ELECTRIC CABLE FROM BATTERY TO BATTERY SUPPORT, ORDER BY THE METER
56
SOLDERING TERMINAL BATTERY CABLE
59
CABLE SHOE
62
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
65
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
68
FASTENER BUTTON GROUND CONNECTION M8-SW
71
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
72
FASTENER BUTTON GROUND CABLE CONNECTION M6-SW,132407
74
PROTECTIVE CAP. BOOT CABLE TO CABLE CONNECTOR
74
CAP SCREW HEAD COVERING
74
BOOT , Replaced By: N913018013201
74
PROTECTION CAP , Replaced By: A0008310929
77
GROMMET STARTING CABLE TO STARTING MOTOR
83
CLIP
86
LOOM TIE TO MOUNT PLASTIC PIPING
89
CABLE STRAP REAR SWIVEL DOOR
95
BRACKET AT CLUTCH BELL,P 503834
98
BRACKET BATTERY CABLE TO CLUTCH BELL
104
CLAMP , Replaced By: A0019957901
104
CLAMP , Replaced By: N916016015202
104
CLAMP LINE MOUNTING
107
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
110
NUT BATTERY CABLE TO STARTING MOTOR
113
146
CABLE STRAP HOLDER. LOOM TIE
149
LOOM TIE LINE MOUNTING 280 MM
