Mercedes A6385460443 - Halter

V 280 638.244

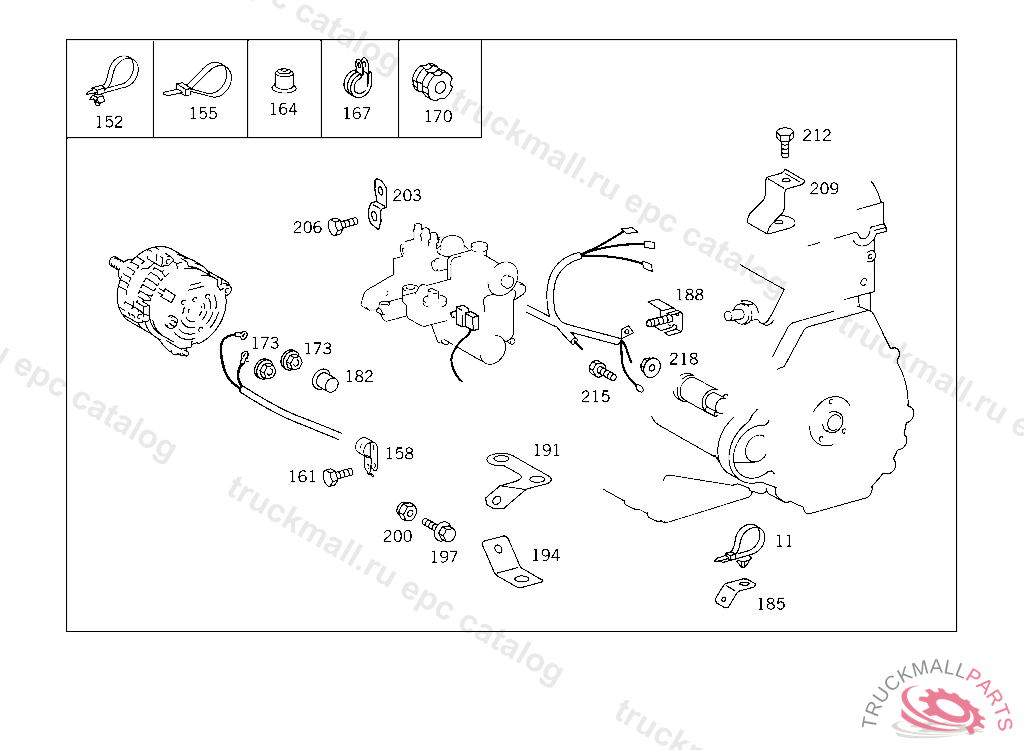

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 407 ATTACHMENT PARTS FOR ELECTRICAL CABLE IL. 2

Поз.
Артикул
Описание
11
A9019970190
CABLE STRAP REAR SWIVEL DOOR
155
A0019974390
LOOM TIE TO MOUNT PLASTIC PIPING
158
A0019954301
CLAMP
161
N304017006034
SCREW COVER PLATE TO COVER PLATE M 6 X 10
164
A0005467435
PROTECTIVE CAP. BOOT CABLE TO CABLE CONNECTOR
167
N916016015202
CLAMP LINE MOUNTING
167
A0019957901
CLAMP , Replaced By: N916016015202
170
A3875462143
BRACKET LINE MOUNTING
173
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
182
A0008310929
CAP SCREW HEAD COVERING
182
N913018013201
PROTECTION CAP , Replaced By: A0008310929
188
A6385400540
BRACKET STARTING CABLE
191
A6385460343
194
A6385460443
197
N910143010017
HEXALOBULAR BOLT BRACKET AND DISTRIBUTOR TO REAR AXLE I M 10X55
200
N910113010001
NUT CROSS MEMBER TO SIDE MEMBERS
218
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
