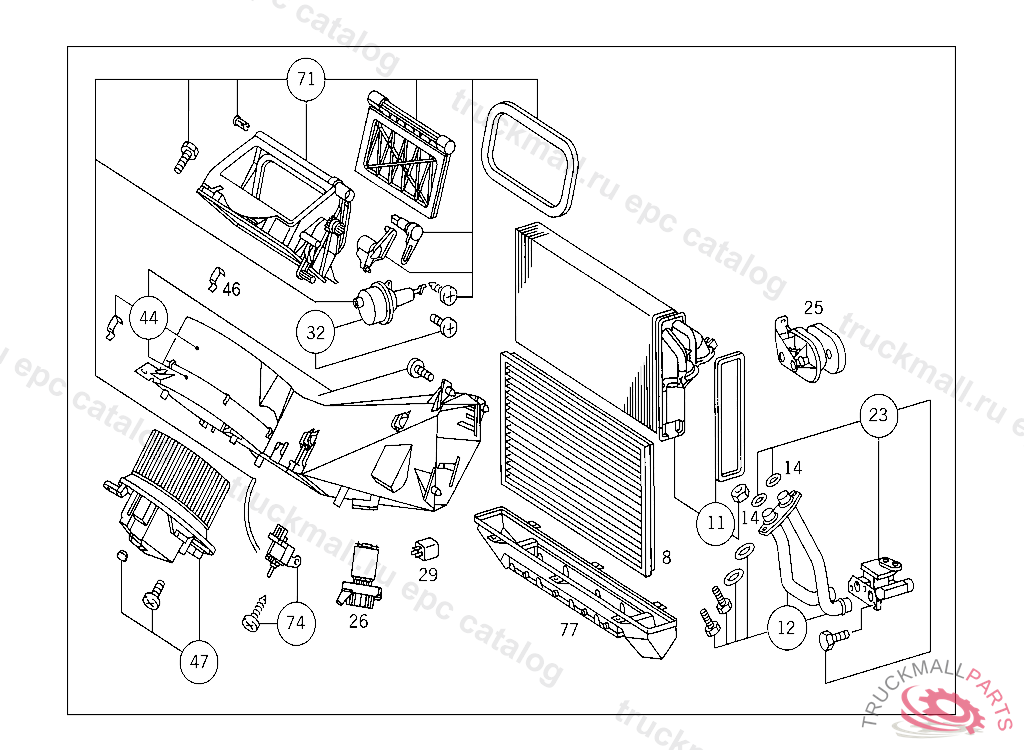

V 280 - 638.244 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
8
FILTER
8
FILTER , Replaced By: A0018353047
11
HEAT EXCHANGER
12
PIPE LINE WITH AIR CONDITIONER
12
PIPE LINE LESS AIR CONDITIONER
14
SEAL PARTS KIT
23
VALVE
25
FLANGE
25
FLANGE
26
RESISTOR
29
RELAY
32
VACUUM BOX
44
HOUSING LOWER PART, LESS BLOWER
46
CLIP
47
71
HOUSING AIR INLET
74
VALVE AIR INLET
77
FASTENER AIR OUTLET
77
999
CLAMP HOSE FASTENING
