Главная
›
Mercedes
›
VAN
›
V 230 TURBODIESEL
›
638.274
›
27 AUTOMATIC TRANSMISSION
›

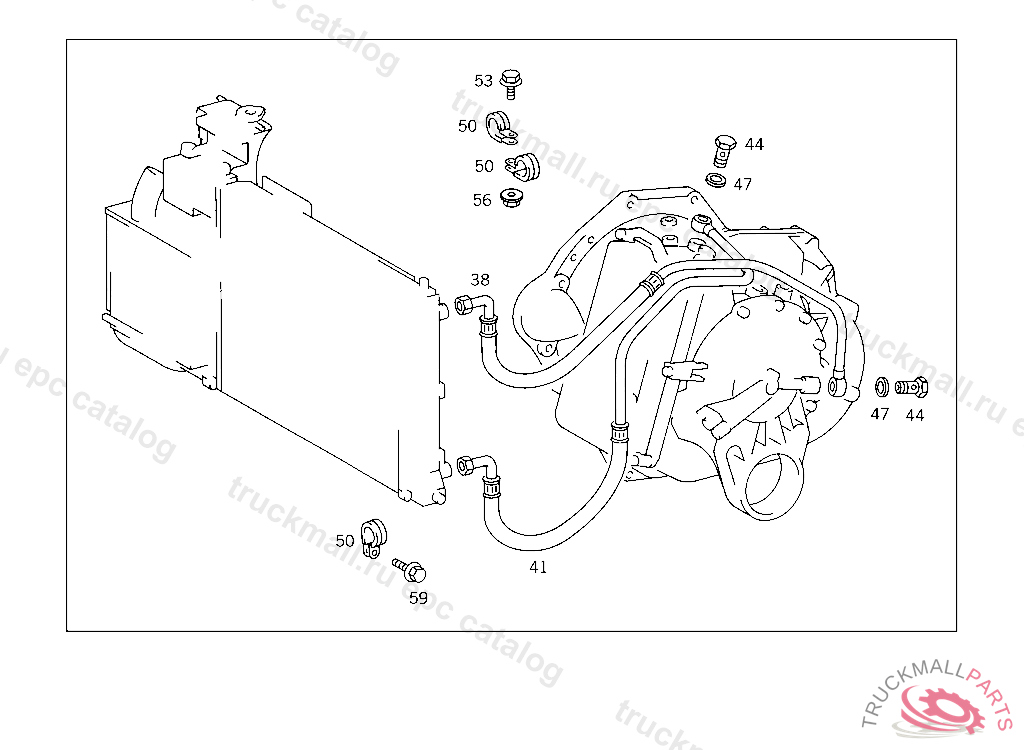

750 TRANSMISSION ATTACHMENT PARTS IL. 2
Mercedes N007603016401 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ *
V 230 TURBODIESEL 638.274
27 AUTOMATIC TRANSMISSION - 750 TRANSMISSION ATTACHMENT PARTS IL. 2
Поз.
Артикул
Описание
38
A6382770388
PIPE FROM OIL COOLER TO TRANSMISSION
38
A6382770088
PIPE , Replaced By: A6382770388
41
A6382770288
PIPE FROM TRANSMISSION TO OIL COOLER
41
A6382770188
PIPE , Replaced By: A6382770288
44
N915036012200
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
47
N007603016401
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
50
N916016012200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
53
N910105006024
HEXAGON HEAD BOLT COVERING TO CAB
56
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
59
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
